LT6376HDF#PBF - Analog Devices

Description: IC OPAMP GP 1 CIRCUIT 14DFN

Download LT6376HDF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

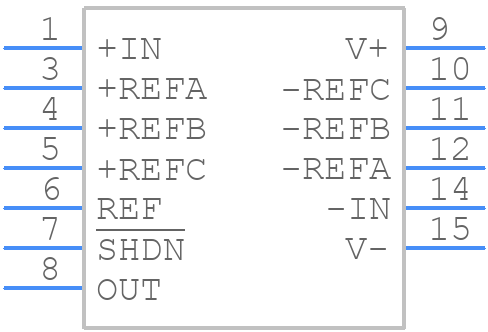

Symbol
LT6376HDF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6376HDF#PBF - Analog Devices PCB footprint - Other - Other - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm) (Reference LTC DWG # 05-08-1963 Rev Ø)
click to zoom
3D Models
LT6376HDF#PBF - Analog Devices - 3D model - Other - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm) (Reference LTC DWG # 05-08-1963 Rev Ø)
click to zoom

LT6376HDF#PBF Details

  • Manufacturer Part Number:

    LT6376HDF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14/12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1963

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    0.3 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    96 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -60 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12/14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    1.9 V/us

  • Slew Rate-Nom:

    4.1 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    60 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    YES

  • Width:

    4 mm

LT6376HDF#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6376HDF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Additionally, avoid using capacitors with high ESL values.
  • The maximum ambient temperature range for the LT6376HDF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management in your design.
  • Yes, the LT6376HDF is suitable for high-reliability and aerospace applications. It is manufactured using a high-reliability process and is screened to ensure compliance with relevant industry standards. However, it's essential to consult with Analog Devices Inc. for specific requirements and certifications.
  • To troubleshoot common issues, start by verifying the PCB layout and component values against the recommended design. Check for proper decoupling, correct component orientation, and ensure that the input and output capacitors are properly selected. If issues persist, consult the datasheet and application notes or contact Analog Devices Inc. for support.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT6376HDF#PBF Overview

Use the download button to access the LT6376HDF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT637, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
