LT6376IDF#PBF - Analog Devices

Description: Differential Amplifiers 230V Common Mode Voltage G = 10 Difference Amplifier

Download LT6376IDF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

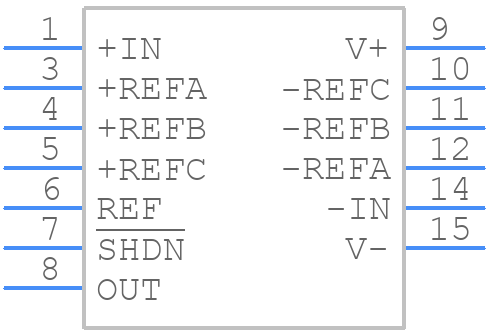

LT6376IDF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6376IDF#PBF - Analog Devices PCB footprint - Other - Other - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm)
click to zoom
3D Models
LT6376IDF#PBF - Analog Devices - 3D model - Other - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm)
click to zoom

LT6376IDF#PBF Details

  • Manufacturer Part Number:

    LT6376IDF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14/12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1963

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    0.3 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    96 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -60 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12/14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    1.9 V/us

  • Slew Rate-Nom:

    4.1 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    60 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    YES

  • Width:

    4 mm

LT6376IDF#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6376 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also a good idea to consult with an experienced PCB designer or Analog Devices' application notes for more specific guidance.
  • The choice of input and output capacitors for the LT6376 depends on the specific application requirements, such as the input voltage, output voltage, and output current. In general, low-ESR capacitors with a high ripple current rating are recommended. X5R or X7R ceramic capacitors or film capacitors are good options. The datasheet provides some guidance on capacitor selection, but it's also a good idea to consult with an experienced engineer or Analog Devices' application notes for more specific guidance.
  • The maximum operating temperature range for the LT6376 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may droop. It's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
  • The LT6376 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's still recommended to add external protection circuitry, such as a voltage supervisor or a crowbar circuit, to protect the device from extreme voltage conditions. Additionally, it's a good idea to add input and output voltage monitoring circuitry to detect and respond to voltage faults.
  • Yes, the LT6376 is suitable for high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of demanding applications such as aerospace, defense, and medical devices. However, it's still important to follow proper design and manufacturing practices, such as using a robust PCB design, selecting high-reliability components, and implementing comprehensive testing and validation procedures.
