LT6402CUD-20#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT6402CUD-20#PBF - IC, SM, OP AMP, DIFF

Download LT6402CUD-20#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

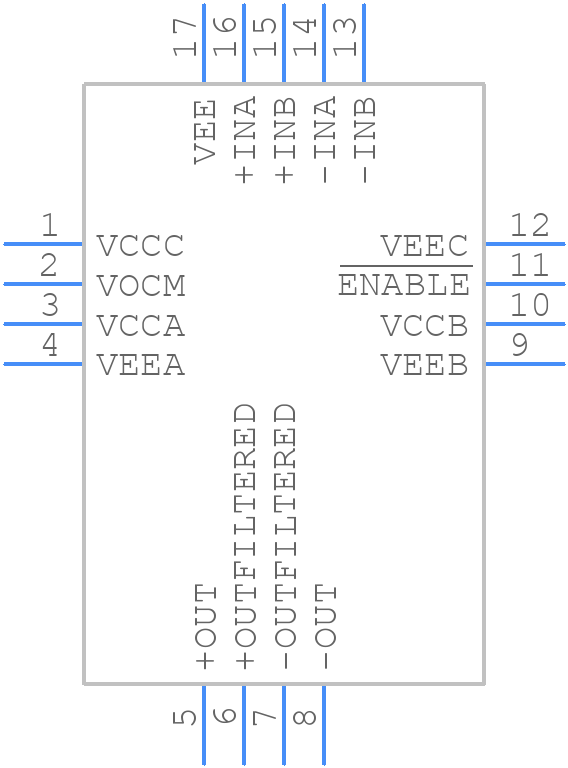

Symbol
LT6402CUD-20#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6402CUD-20#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LT6402CUD-20#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom

LT6402CUD-20#PBF Details

  • Manufacturer Part Number:

    LT6402CUD-20#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    15 µA

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    400 V/us

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT6402CUD-20#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6402 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The LT6402 requires a bias voltage of 2.5V to 5.5V on the VCC pin. Ensure that the bias voltage is stable and noise-free, and that the input signals are within the recommended common-mode range.
  • The LT6402 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat sinking.
  • The LT6402 is a commercial-grade device, but Analog Devices offers a military-grade version, the LT6402HMSE, which is designed for high-reliability and aerospace applications. Consult with Analog Devices for more information.
  • Common issues with the LT6402 can be caused by improper PCB layout, inadequate biasing, or incorrect input signal conditioning. Consult the datasheet and application notes for troubleshooting guidelines, and consider seeking support from Analog Devices' technical team.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT6402CUD-20#PBF Overview

Use the download button to access the LT6402CUD-20#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT640, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
