LT6600IDF-2.5#PBF - Analog Devices

Description: Differential Amplifiers Differential Driver with 2.5MHz LP Filter

Download LT6600IDF-2.5#PBF Model

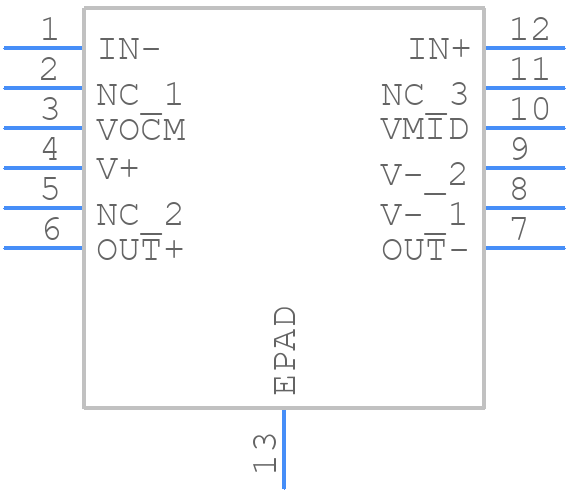

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6600IDF-2.5#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN4X4
click to zoom
3D Models
LT6600IDF-2.5#PBF - Analog Devices  - 3D model - Small Outline No-lead - DFN4X4
click to zoom

LT6600IDF-2.5#PBF Details

  • Manufacturer Part Number:

    LT6600IDF-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, LEAD FREE, PLASTIC, MO-220WGGD, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1733

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    35 µA

  • Bias Current-Max (IIB) @25C:

    -35 µA

  • Common-mode Reject Ratio-Nom:

    63 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    35000 µV

  • JESD-30 Code:

    S-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    36 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    4 mm

LT6600IDF-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6600 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog section.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, check that the input and output capacitors are of sufficient value and that the feedback resistors are properly selected. If oscillations occur, try adding a small capacitor (e.g., 10pF) in parallel with the feedback resistor.
  • The maximum power dissipation of the LT6600 is dependent on the package type and the ambient temperature. For the IDF package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
  • While the LT6600 is a voltage-controlled oscillator, it's not recommended to use it as a voltage regulator. The device is designed to provide a stable clock signal, not to regulate voltage. Using it as a voltage regulator may lead to instability and poor performance.
  • The output frequency of the LT6600 can be adjusted by changing the value of the external resistor (RSET) connected between the SET pin and ground. A smaller RSET value will result in a higher output frequency, while a larger RSET value will result in a lower output frequency.
