LT6700HVHS6-2#TRMPBF - Analog Devices

Description: Analog Comparators uPower Dual Comparator + 400mV Ref

Download LT6700HVHS6-2#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

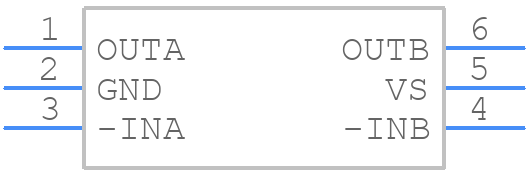

LT6700HVHS6-2#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6700HVHS6-2#TRMPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - LT6700HVHS6-2#TRMPBF-
click to zoom
3D Models
LT6700HVHS6-2#TRMPBF - Analog Devices - 3D model - SOT23 (6-Pin) - LT6700HVHS6-2#TRMPBF-
click to zoom

LT6700HVHS6-2#TRMPBF Details

  • Manufacturer Part Number:

    LT6700HVHS6-2#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.05 µA

  • Bias Current-Max (IIB) @25C:

    0.01 µA

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    29000 ns

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.016 mA

  • Supply Voltage Limit-Max:

    18.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LT6700HVHS6-2#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6700HVHS6-2 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the device's input and output impedance within the recommended range. Additionally, avoid using long input traces and ensure that the power supply is well-regulated.
  • The maximum junction temperature of the LT6700HVHS6-2 is 150°C. It's essential to ensure that the device's operating temperature remains below this limit to prevent damage and ensure reliable operation.
  • Yes, the LT6700HVHS6-2 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the LT6700HVHS6-2, start by checking the power supply voltage, input and output waveforms, and the device's operating temperature. Use an oscilloscope to verify that the input and output signals are within the recommended range, and check for any signs of oscillation or instability.
