LT7101IUHE#PBF - Analog Devices

Description: Buck Switching Regulator IC Positive Adjustable 1V 1 Output 1A 36-WFQFN, 26 Leads, Exposed Pad

Download LT7101IUHE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

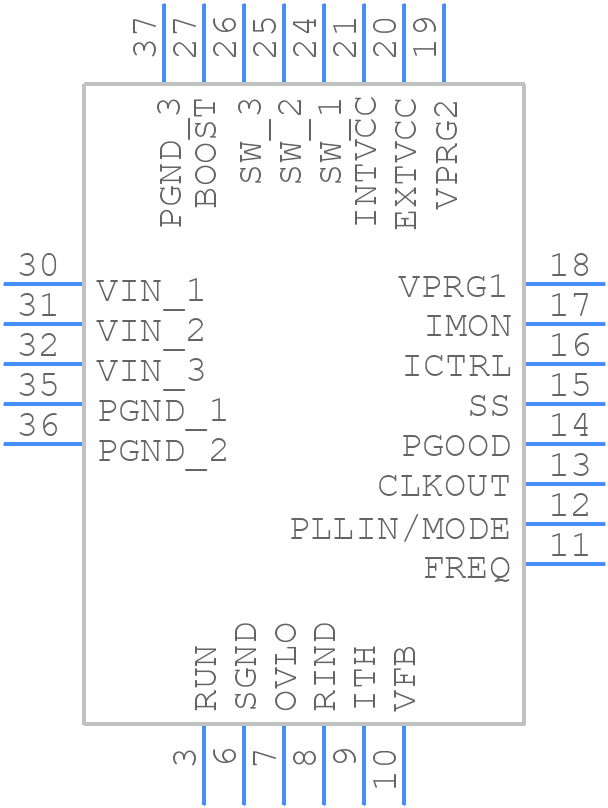

Symbol
LT7101IUHE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT7101IUHE#PBF - Analog Devices PCB footprint - Other - Other - UHE Package Variation: UHE36(26) 36-Lead Plastic QFN (5mm × 6mm)_2025-1
click to zoom
3D Models
LT7101IUHE#PBF - Analog Devices - 3D model - Other - UHE Package Variation: UHE36(26) 36-Lead Plastic QFN (5mm × 6mm)_2025-1
click to zoom

LT7101IUHE#PBF Details

  • Manufacturer Part Number:

    LT7101IUHE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1983

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    OUTPUT VOLTAGE IS FROM 1V TO 105V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    105 V

  • Input Voltage-Min:

    4.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.85 A

  • Output Voltage-Max:

    105 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LT7101IUHE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT7101IUHE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The LT7101IUHE can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate it within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT7101IUHE is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the required standards for high-reliability applications.
  • To troubleshoot issues with the LT7101IUHE, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended specifications and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
