LT7101IUHE#TRPBF - Analog Devices

Description: Buck Switching Regulator IC Positive Adjustable 1V 1 Output 1A 36-WFQFN, 26 Leads, Exposed Pad

Download LT7101IUHE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

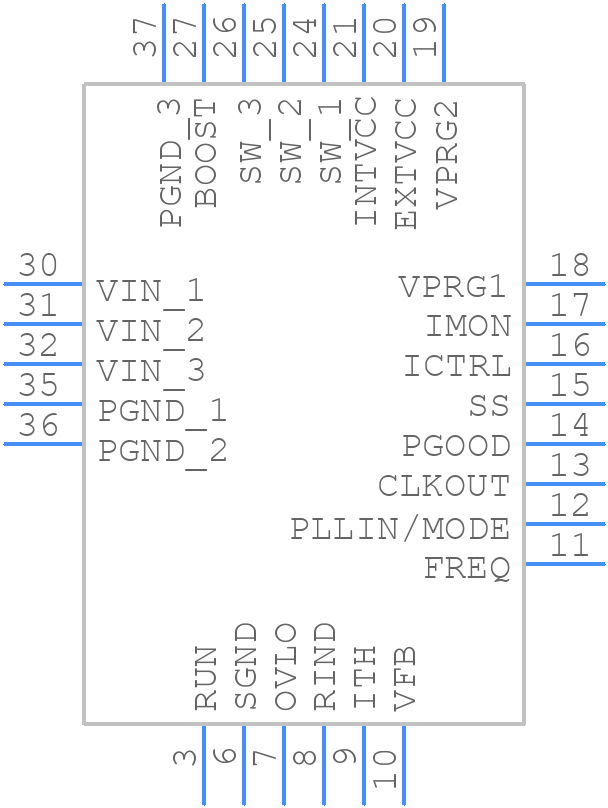

LT7101IUHE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

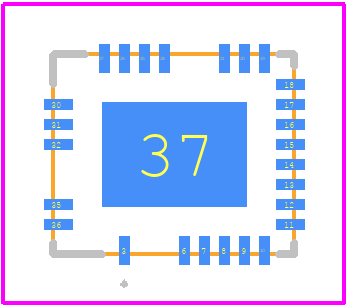

LT7101IUHE#TRPBF - Analog Devices PCB footprint - Other - Other - UHE36(26) PACKAGE 36-LEAD (5mm × 6mm) PLASTIC QFN_2025-4
click to zoom
3D Models
LT7101IUHE#TRPBF - Analog Devices - 3D model - Other - UHE36(26) PACKAGE 36-LEAD (5mm × 6mm) PLASTIC QFN_2025-4
click to zoom

LT7101IUHE#TRPBF Details

  • Manufacturer Part Number:

    LT7101IUHE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1983

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    OUTPUT VOLTAGE IS FROM 1V TO 105V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    105 V

  • Input Voltage-Min:

    4.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.85 A

  • Output Voltage-Max:

    105 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LT7101IUHE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT7101IUHE#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Additionally, consider adding a small resistor (e.g., 1-10 ohms) in series with the output capacitor to dampen any oscillations.
  • The LT7101IUHE#TRPBF is rated for operation up to 125°C ambient temperature. However, it's recommended to derate the device's performance and consider thermal management strategies (e.g., heat sinks, airflow) for high-temperature applications.
  • While the datasheet recommends a specific input capacitor value and type, you can use a different value or type if necessary. However, be aware that this may affect the device's performance, stability, and noise characteristics. It's recommended to consult with Analog Devices' application engineers or perform thorough simulations and testing to ensure compatibility.
  • Start by verifying the power supply voltage, input and output voltage levels, and current consumption. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to inspect the output voltage waveform and look for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' support team if needed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT7101IUHE#TRPBF Overview

Use the download button to access the LT7101IUHE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT710, or try a keyword search, such as Switching Regulator or Controllers
