LT8304HS8E#PBF - Analog Devices

Description: Switching Voltage Regulators 100Vin Micropower No-Opto Isolated Flyback Converter with 150V/3.6A Switch

Download LT8304HS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

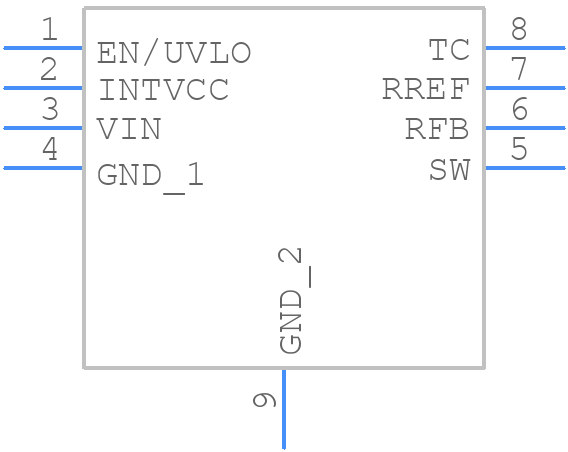

Symbol
LT8304HS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8304HS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch) Exposed Pad
click to zoom
3D Models
LT8304HS8E#PBF - Analog Devices - 3D model - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch) Exposed Pad
click to zoom

LT8304HS8E#PBF Details

  • Manufacturer Part Number:

    LT8304HS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1857

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    385 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.899 mm

LT8304HS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8304HS8E involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected to ensure that the impedance of the input source and output load are within the stable operating range of the IC.
  • The LT8304HS8E has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to follow the recommended PCB layout guidelines to minimize thermal resistance.
  • To troubleshoot issues with the LT8304HS8E, start by verifying that the input and output capacitors are properly selected and that the PCB layout follows the recommended guidelines. Check for any signs of overheating, and ensure that the input and output voltages are within the specified range. If the issue persists, consult the datasheet and application notes for further guidance.
  • The LT8304HS8E is a commercial-grade device, but Analog Devices Inc. offers a high-reliability version, the LT8304HS8E#PBF-H, which is designed for high-reliability applications. Consult the datasheet and application notes for more information on the high-reliability version.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8304HS8E#PBF Overview

Use the download button to access the LT8304HS8E#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT830, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
