LT8312HMS#PBF - Analog Devices

Description: Boost Controller with Power Factor Correction

Download LT8312HMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

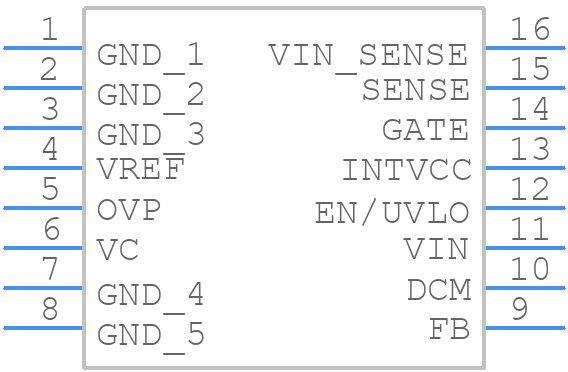

LT8312HMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8312HMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)..
click to zoom
3D Models
LT8312HMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)..
click to zoom

LT8312HMS#PBF Details

  • Manufacturer Part Number:

    LT8312HMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    10 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT8312HMS#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LT8312HMS#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
  • The selection of input and output capacitors for the LT8312HMS#PBF depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the maximum input voltage and current, while the output capacitor should be able to handle the maximum output voltage and current. A good starting point is to use a 10uF ceramic capacitor for the input and a 22uF ceramic capacitor for the output.
  • The maximum ambient temperature that the LT8312HMS#PBF can operate in is 125°C. However, the device's performance and reliability may degrade at high temperatures, so it is recommended to operate the device at a temperature below 100°C for optimal performance.
  • To ensure that the LT8312HMS#PBF is operating within its safe operating area (SOA), it is recommended to monitor the device's input voltage, output voltage, and output current. The device should be operated within the recommended voltage and current ranges specified in the datasheet. Additionally, the device's thermal performance should be monitored to ensure that it is operating within its recommended temperature range.
  • The recommended input voltage range for the LT8312HMS#PBF is 2.9V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
