LT8335EDDB#TRMPBF - Analog Devices

Description: Switching Voltage Regulators Low IQ Boost/SEPIC/ Inverting Converter with 2A, 28V Switch

Download LT8335EDDB#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

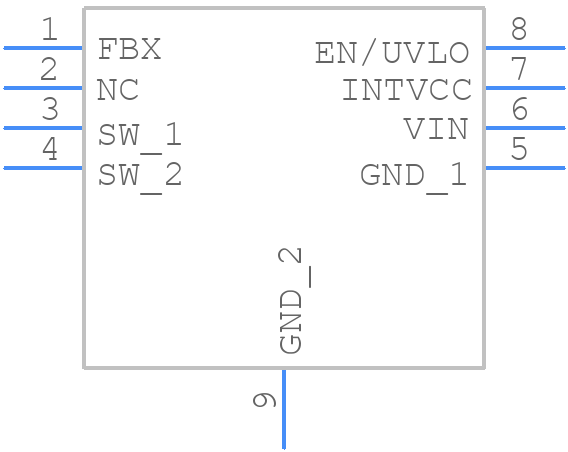

LT8335EDDB#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8335EDDB#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead (3mm × 2mm) Plastic DFN
click to zoom
3D Models
LT8335EDDB#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead (3mm × 2mm) Plastic DFN
click to zoom

LT8335EDDB#TRMPBF Details

  • Manufacturer Part Number:

    LT8335EDDB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LT8335EDDB#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8335 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended.
  • The LT8335 can handle input voltages up to 42V, but it's recommended to limit the input voltage to 36V for optimal performance and reliability.
  • The LT8335 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to ensure proper thermal management and consider the device's thermal characteristics when designing for high-temperature applications.
  • When selecting an inductor for the LT8335, consider the inductor's saturation current, DC resistance, and core material. A low-DCR inductor with a high saturation current is recommended. The inductor value should be chosen based on the output voltage and current requirements.
