LT8336EV#PBF - Analog Devices

Description: 40V, 2.5A, Low IQ Synchronous Step-Up Silent Switcher with PassThru

Download LT8336EV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

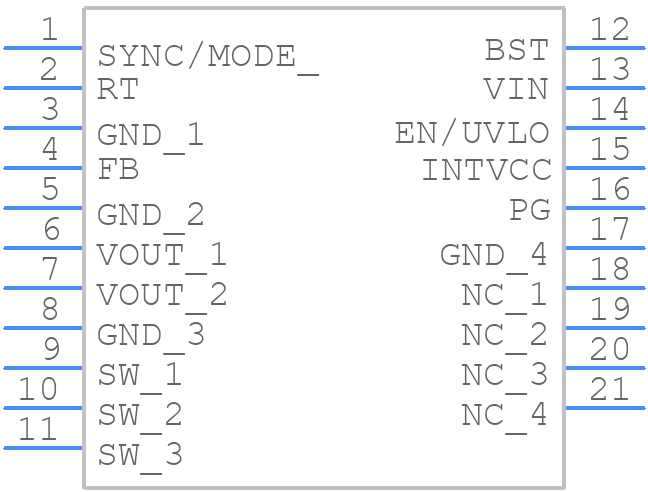

LT8336EV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8336EV#PBF - Analog Devices PCB footprint - Other - Other - LQFN Package_16-Lead
click to zoom
3D Models
LT8336EV#PBF - Analog Devices - 3D model - Other - LQFN Package_16-Lead
click to zoom

LT8336EV#PBF Details

  • Manufacturer Part Number:

    LT8336EV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1626

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.3 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    2.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8336EV#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8336EV#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the input and output impedance are matched. It's also recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any oscillations.
  • The LT8336EV#PBF can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V or less to ensure reliable operation and to prevent damage to the device.
  • The LT8336EV#PBF is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. It's also important to ensure good thermal management and to follow the recommended thermal design guidelines to prevent overheating.
  • To troubleshoot issues with the LT8336EV#PBF, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or ringing on the output. Also, check the PCB layout and component values to ensure they match the recommended values. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8336EV#PBF Overview

Use the download button to access the LT8336EV#PBF schematic symbol, PCB footprint, and 3D model.
