LT8336JV#PBF - Analog Devices

Description: 40V, 2.5A, Low IQ Synchronous Step-Up Silent Switcher with PassThru

Download LT8336JV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

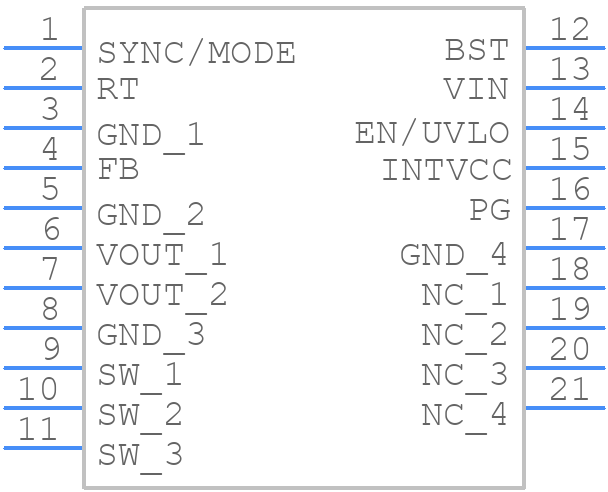

LT8336JV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8336JV#PBF - Analog Devices PCB footprint - Other - Other - LT8336JV#PBF-2
click to zoom
3D Models
LT8336JV#PBF - Analog Devices - 3D model - Other - LT8336JV#PBF-2
click to zoom

LT8336JV#PBF Details

  • Manufacturer Part Number:

    LT8336JV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1626

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.3 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    2.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8336JV#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8336JV#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with capacitors, and use a low-ESR output capacitor to minimize ringing. Also, avoid using long traces and keep the feedback loop as short as possible.
  • The LT8336JV#PBF can handle input voltages up to 42V, but it's recommended to keep the input voltage below 36V to ensure reliable operation and to prevent damage to the device.
  • The LT8336JV#PBF is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, make sure to follow the recommended thermal design guidelines to prevent overheating.
  • To troubleshoot issues with the LT8336JV#PBF, start by checking the input voltage, output voltage, and feedback loop. Use an oscilloscope to check for oscillations or ringing on the output. Also, verify that the component values and PCB layout meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8336JV#PBF Overview

Use the download button to access the LT8336JV#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT833, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
