LT8362EMSE#PBF - Analog Devices

Description: Switching Voltage Regulators L IQ Boost/SEPIC/Inv Conv w/ 2A, 60V Swi

Download LT8362EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

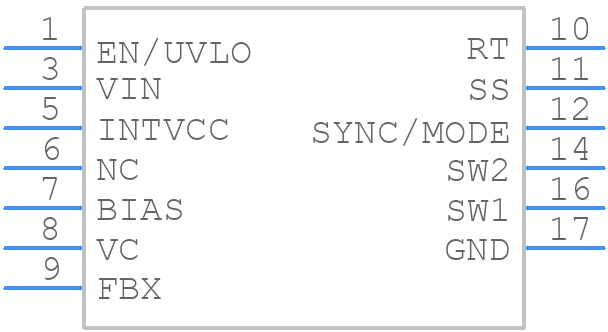

Symbol
LT8362EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8362EMSE#PBF - Analog Devices PCB footprint - Other - Other - 16-Lead Plastic MSOP
click to zoom
3D Models
LT8362EMSE#PBF - Analog Devices - 3D model - Other - 16-Lead Plastic MSOP
click to zoom

LT8362EMSE#PBF Details

  • Manufacturer Part Number:

    LT8362EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP -16/12

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1871

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO BE CONFIGURED AS SEPIC/INVERTING CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12/16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT8362EMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT8362EMSE can handle is 80V, but it's recommended to operate it within the specified input voltage range of 3.5V to 60V for optimal performance.
  • To optimize the layout of the LT8362EMSE, keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the input and output traces. Also, ensure that the device is placed away from high-current carrying traces and heat sources.
  • The recommended output capacitor value for the LT8362EMSE is 10uF to 22uF, and it's recommended to use a low-ESR ceramic or film capacitor to minimize output voltage ripple and ensure stability.
  • The LT8362EMSE is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Consult the datasheet for thermal derating curves.
  • To troubleshoot issues with the LT8362EMSE, check the input voltage, output load, and PCB layout for any anomalies. Use an oscilloscope to measure the output voltage and current, and check for any signs of overheating or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8362EMSE#PBF Overview

Use the download button to access the LT8362EMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT836, or try a keyword search, such as Switching Regulator or Controllers
