LT8362HDD#PBF - Analog Devices

Description: Switching Voltage Regulators Low IQ Boost/SEPIC/ Inverting Converter with 2A, 60V Switch

Download LT8362HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

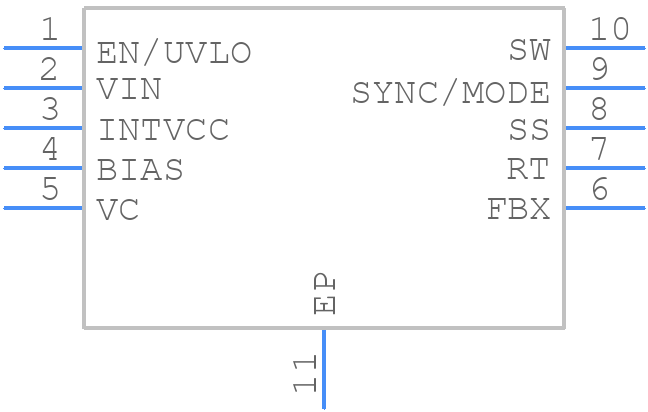

LT8362HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8362HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package1
click to zoom
3D Models
LT8362HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package1
click to zoom

LT8362HDD#PBF Details

  • Manufacturer Part Number:

    LT8362HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO BE CONFIGURED AS SEPIC/INVERTING CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8362HDD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT8362HDD#PBF can handle is 80V. However, it's recommended to operate the device within the specified input voltage range of 3.5V to 60V for optimal performance and reliability.
  • To optimize the layout of the LT8362HDD#PBF, it's essential to follow the recommended PCB layout guidelines provided in the datasheet. This includes keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces.
  • The recommended input capacitor type for the LT8362HDD#PBF is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
  • The LT8362HDD#PBF is rated for operation up to 125°C junction temperature. However, it's essential to ensure that the device is properly heatsinked and that the ambient temperature is within the specified range to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the LT8362HDD#PBF, start by verifying that the input voltage and current are within the specified range. Check the output voltage and current to ensure they are within the expected range. Also, verify that the device is properly heatsinked and that the ambient temperature is within the specified range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8362HDD#PBF Overview

Use the download button to access the LT8362HDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT836, or try a keyword search, such as Switching Regulator or Controllers
