LT8364IDE#TRPBF - Analog Devices

Description: Low IQ Boost/SEPIC/Inverting Converter with 4A, 60V Switch

Download LT8364IDE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

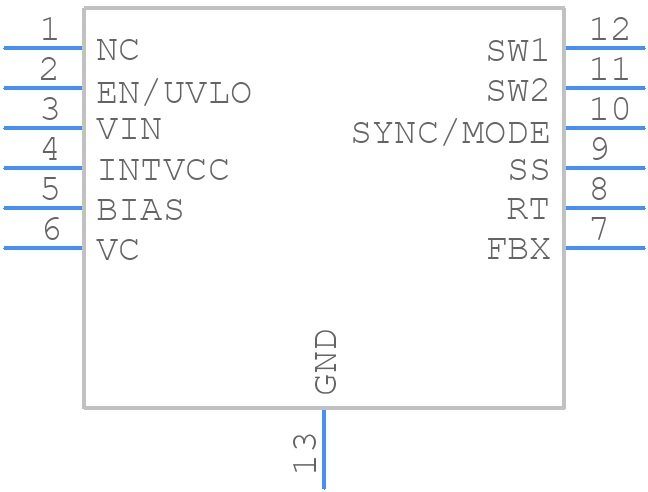

Symbol
LT8364IDE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8364IDE#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LT8364IDE#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom

LT8364IDE#TRPBF Details

  • Manufacturer Part Number:

    LT8364IDE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT CAN ALSO CONFIGURED AS INVERTING OR SEPIC CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8364IDE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LT8364IDE's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the input and output capacitors close to the IC. The datasheet provides a recommended layout, but it's also recommended to consult with experienced PCB designers and to simulate the layout using tools like LTspice or ADS.
  • To ensure stability, it's essential to follow the datasheet's guidelines for component selection, PCB layout, and compensation. The LT8364IDE is a current-mode converter, so the compensation network is critical. Analog Devices provides a compensation calculator tool to help with this. Additionally, it's recommended to test the design with a variety of input and output conditions to ensure stability.
  • The maximum ambient temperature for the LT8364IDE is 125°C, but this can be derated based on the specific application and thermal design. It's essential to consider the thermal performance of the IC, PCB, and surrounding components to ensure reliable operation.
  • Yes, the LT8364IDE is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the datasheet's guidelines and to consult with Analog Devices' application engineers to ensure the device meets the specific requirements of the application.
  • Troubleshooting the LT8364IDE requires a systematic approach. Start by verifying the input and output voltages, and checking the device's operating frequency. Use an oscilloscope to examine the waveforms and look for signs of instability or oscillation. Consult the datasheet and application notes for guidance, and consider seeking help from Analog Devices' application engineers or online forums.
