LT8390AHUFD#PBF - Analog Devices

Description: Switching Voltage Regulators 60V Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Download LT8390AHUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

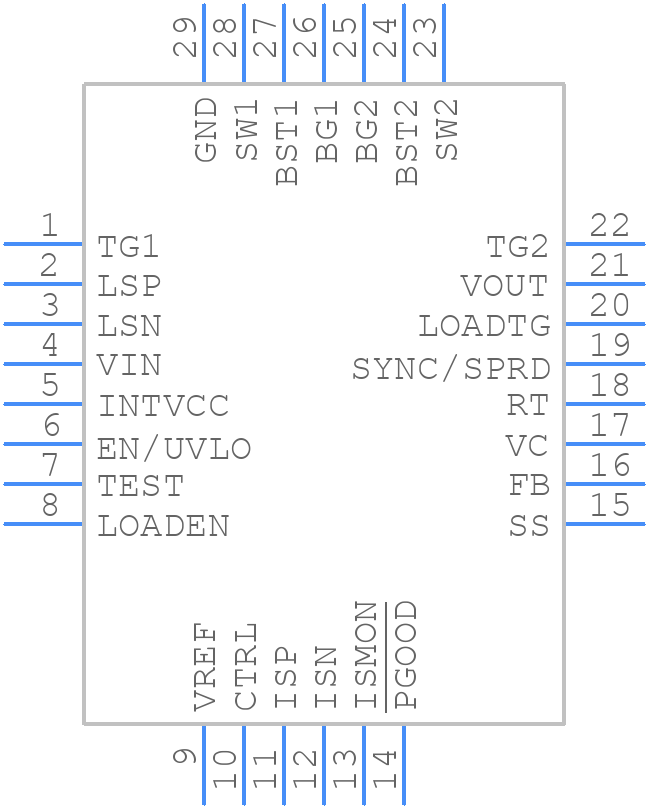

LT8390AHUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8390AHUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Plastic QFN- (4x5) LTC DWG
click to zoom
3D Models
LT8390AHUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead Plastic QFN- (4x5) LTC DWG
click to zoom

LT8390AHUFD#PBF Details

  • Manufacturer Part Number:

    LT8390AHUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2100 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LT8390AHUFD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8390AHUFD involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors meet the recommended specifications, and that the feedback resistors are properly selected.
  • The maximum ambient temperature range for the LT8390AHUFD is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LT8390AHUFD is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the required standards for high-reliability applications.
  • To troubleshoot issues with the LT8390AHUFD, start by checking the input and output voltages, and ensuring that the device is properly powered. Check the feedback loop and ensure that it is properly configured. Also, check for any signs of overheating or excessive current draw.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8390AHUFD#PBF Overview

Use the download button to access the LT8390AHUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT839, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
