LT8390EUFD#WTRPBF - Analog Devices

Description: 60V Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Download LT8390EUFD#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

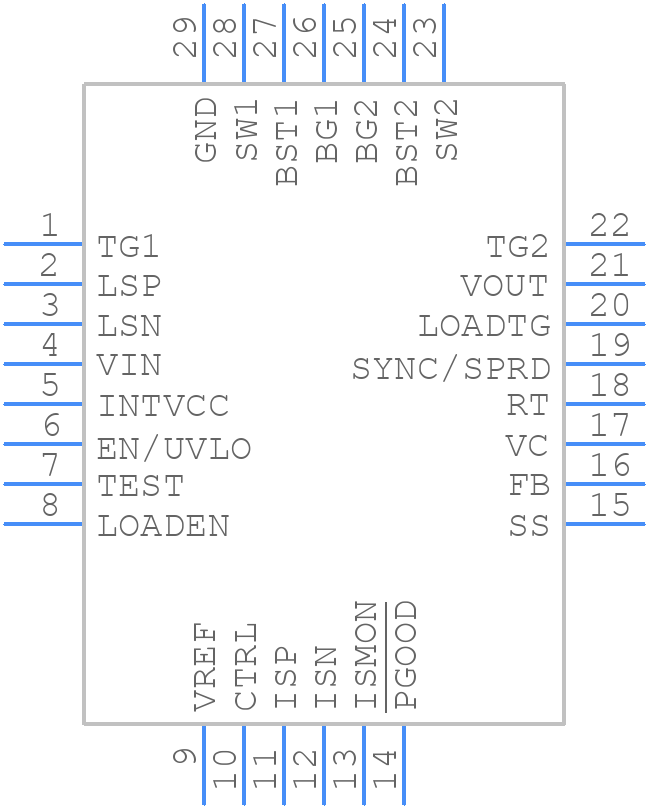

LT8390EUFD#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8390EUFD#WTRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LT8390EUFD#WTRPBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm)
click to zoom

LT8390EUFD#WTRPBF Details

  • Manufacturer Part Number:

    LT8390EUFD#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N28

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.12X16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    630 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LT8390EUFD#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8390EUFD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the LT8390EUFD depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. The datasheet provides guidelines for capacitor selection, and it's essential to follow them.
  • The LT8390EUFD can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may be affected at higher temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • Yes, the LT8390EUFD is designed to meet the requirements of high-reliability applications. The device is built with high-reliability materials and manufacturing processes, and it's tested to ensure that it meets the required standards. However, it's essential to follow the recommended design and layout guidelines, as well as the application notes, to ensure that the device operates reliably in high-reliability applications.
  • Troubleshooting issues with the LT8390EUFD involves identifying the symptoms of the problem, checking the device's operating conditions, and verifying that the device is properly connected and configured. The datasheet and application notes provide troubleshooting guidelines, and it's essential to follow them to identify and resolve the issue quickly and efficiently.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8390EUFD#WTRPBF Overview

Use the download button to access the LT8390EUFD#WTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT839, or try a keyword search, such as Switching Regulator or Controllers
