LT8390JFE#TRPBF - Analog Devices

Description: 60V Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Download LT8390JFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

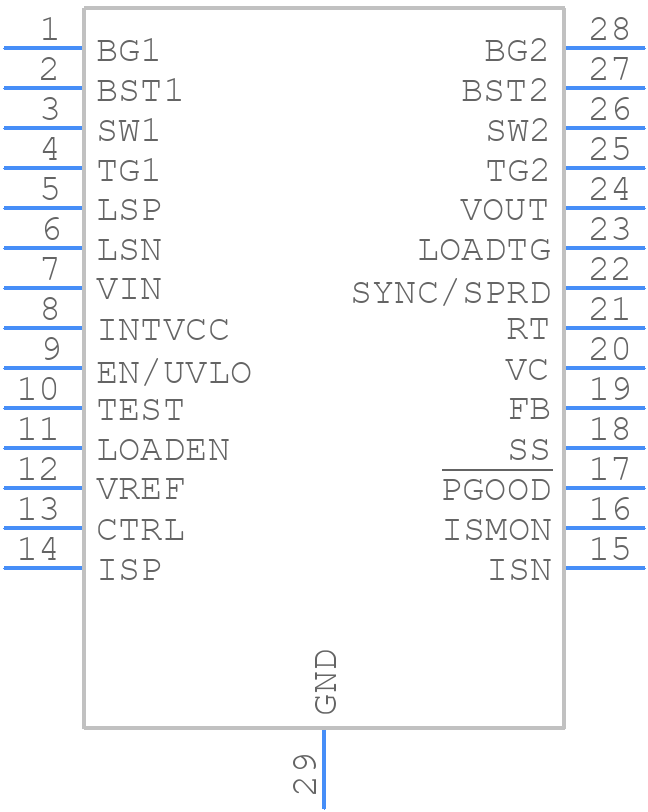

LT8390JFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8390JFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic TSSOP
click to zoom
3D Models
LT8390JFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic TSSOP
click to zoom

LT8390JFE#TRPBF Details

  • Manufacturer Part Number:

    LT8390JFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    630 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT8390JFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8390 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also a good idea to consult with experienced engineers or use online resources for more specific guidance.
  • The selection of input and output capacitors for the LT8390 depends on the specific application requirements, such as the input voltage range, output voltage, and output current. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also important to consult with capacitor manufacturers and consider factors such as cost, size, and reliability.
  • The maximum ambient temperature range for the LT8390 is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's important to consider the specific application requirements and consult with Analog Devices Inc for more information.
  • Yes, the LT8390 is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's important to consult with Analog Devices Inc and follow their guidelines for using the device in these applications.
  • Troubleshooting common issues with the LT8390 involves identifying the root cause of the problem, which can be related to the PCB layout, component selection, or application-specific requirements. Consult the datasheet and application notes for guidance on troubleshooting, and consider seeking help from experienced engineers or Analog Devices Inc's technical support team.
