LT8391EUFD#PBF - Analog Devices

Description: LED Driver IC 1 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 28-QFN (4x5)

Download LT8391EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

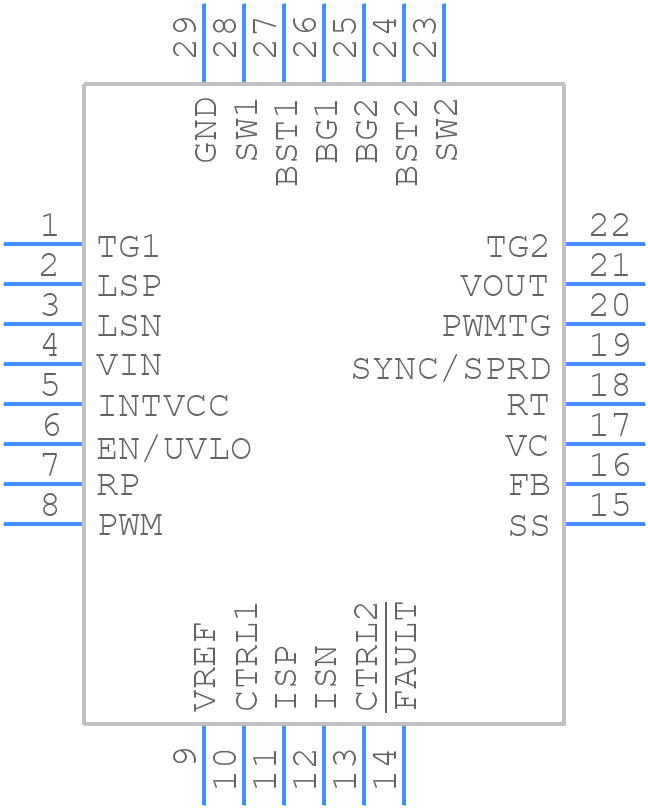

Symbol
LT8391EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8391EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom
3D Models
LT8391EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom

LT8391EUFD#PBF Details

  • Manufacturer Part Number:

    LT8391EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LT8391EUFD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8391EUFD involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should have a low ESR and be able to handle the input voltage ripple. A ceramic capacitor with a value of 10uF to 22uF is recommended. The output capacitor should have a low ESR and be able to handle the output current. A ceramic capacitor with a value of 22uF to 47uF is recommended.
  • The LT8391EUFD can operate in an ambient temperature range of -40°C to 125°C. However, the junction temperature should not exceed 150°C.
  • The power dissipation of the LT8391EUFD can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency of the LT8391EUFD is typically around 95%.
  • The recommended input voltage range for the LT8391EUFD is 3.5V to 36V. However, the device can operate with an input voltage as low as 2.9V and as high as 40V.
