LT8418ACBZ-R7 - Analog Devices

Description: 100V Half-Bridge GaN Driver with Smart Integrated Bootstrap Switch

Download LT8418ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

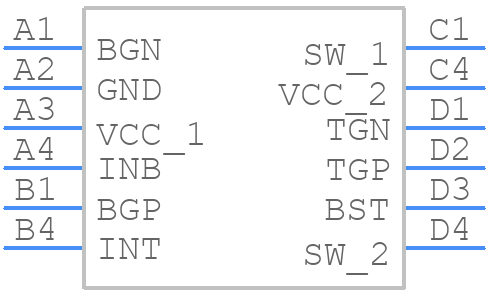

LT8418ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8418ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - LT8418ACBZ-R7
click to zoom
3D Models
LT8418ACBZ-R7 - Analog Devices - 3D model - BGA - LT8418ACBZ-R7
click to zoom

LT8418ACBZ-R7 Details

  • Manufacturer Part Number:

    LT8418ACBZ-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-16/12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XBGA-B12

  • Length:

    1.67 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    8 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.85 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3.85 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Turn-off Time:

    0.015 µs

  • Turn-on Time:

    0.016 µs

  • Width:

    1.67 mm

LT8418ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8418ACBZ-R7 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum ambient temperature range for the LT8418ACBZ-R7 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • Yes, the LT8418ACBZ-R7 is suitable for high-reliability applications. It's built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device's reliability.
  • To troubleshoot issues with the LT8418ACBZ-R7, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for noise, oscillations, or other anomalies. If the issue persists, consult the datasheet and application notes or contact Analog Devices' support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8418ACBZ-R7 Overview

Use the download button to access the LT8418ACBZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT841, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
