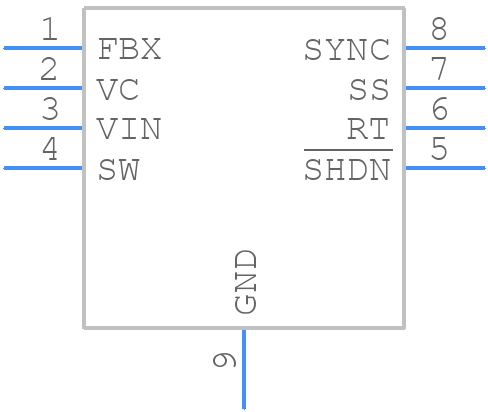

LT8570EDD#TRPBF - Analog Devices

LT8570EDD#TRPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A good PCB layout for the LT8570EDD#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
• How do I ensure stability and prevent oscillations in my design?
  To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Additionally, consider adding a small resistor (e.g., 1Ω) in series with the output capacitor to dampen oscillations.
• What is the maximum ambient temperature for reliable operation?
  The LT8570EDD#TRPBF is rated for operation up to 125°C ambient temperature, but it's recommended to derate the device's performance and consider thermal management strategies (e.g., heat sinks, airflow) to ensure reliable operation at high temperatures.
• Can I use a different inductor value or type than recommended?
  While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to optimize the device's performance, and deviating from these recommendations may require additional design iterations and testing.
• How do I troubleshoot issues with my LT8570EDD#TRPBF-based design?
  To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper component values, PCB layout, and soldering. Use an oscilloscope to inspect the output voltage ripple, switching frequency, and input/output waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
