LT8570EMS8E#PBF - Analog Devices

Description: Switching Voltage Regulators Boost/SEPIC/Inverting DC/DC Converter with 65V Switch, Soft-Start and Synchronization

Download LT8570EMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

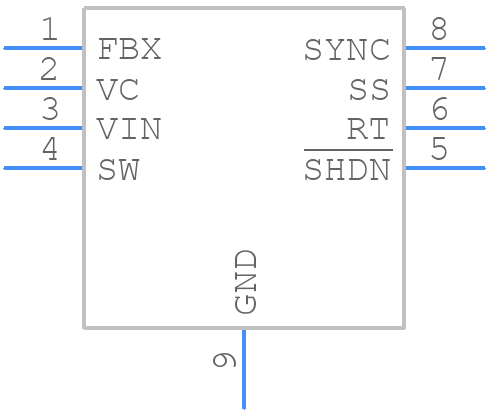

Symbol
LT8570EMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8570EMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic MSOP_1
click to zoom
3D Models
LT8570EMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic MSOP_1
click to zoom

LT8570EMS8E#PBF Details

  • Manufacturer Part Number:

    LT8570EMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO CONFIGURED AS SEPIC/INVERTING CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.55 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1770 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8570EMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8570 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the feedback resistors should be chosen to ensure a stable gain margin.
  • The maximum ambient temperature range for the LT8570 is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LT8570 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LT8570, start by checking the input and output voltages, and ensure that the device is properly powered. Check for any signs of overheating, and verify that the PCB layout and component values are correct. Use an oscilloscope to check for any oscillations or noise on the output.
