LT8580IMS8E#PBF - Analog Devices

Description: Conv DC-DC 2.55V to 40V Step Up 65V Automotive 8-Pin MSOP EP Tube

Download LT8580IMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

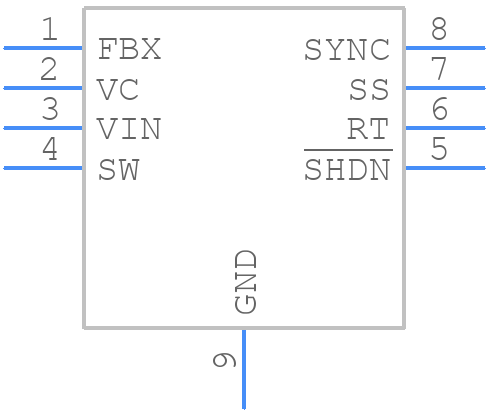

Symbol
LT8580IMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8580IMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT8580IMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT8580IMS8E#PBF Details

  • Manufacturer Part Number:

    LT8580IMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.55 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1770 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8580IMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8580IMS8E#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the analog and digital grounds. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor. Also, ensure that the feedback resistors are properly sized and that the loop compensation is correct.
  • The LT8580IMS8E#PBF has an operating temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to consult the datasheet and perform thermal simulations to determine the maximum ambient temperature range for your specific design.
  • Yes, the LT8580IMS8E#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process and is qualified to the AEC-Q100 standard for automotive applications. However, it's essential to consult the datasheet and application notes to ensure that the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT8580IMS8E#PBF, start by checking the input and output voltages, and ensuring that the device is properly powered. Then, verify that the feedback loop is correct and that the compensation is properly set. If the issue persists, consult the datasheet and application notes, and consider using a scope or other diagnostic tools to identify the root cause of the problem.
