LT8608IMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT8608IMSE#PBF - DC/DC CONV, SYNC BUCK, 2.2MHZ, MSOP-10

Download LT8608IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

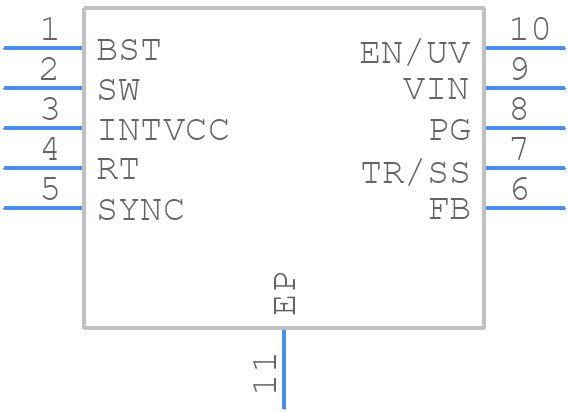

Symbol
LT8608IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8608IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package LTC DWG 10-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT8608IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package LTC DWG 10-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT8608IMSE#PBF Details

  • Manufacturer Part Number:

    LT8608IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8608IMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT8608 can handle is 42V, but it's recommended to keep it below 36V for optimal performance and reliability.
  • To optimize the layout for the LT8608, keep the input and output capacitors close to the IC, use a solid ground plane, and minimize the length of the input and output traces. Also, ensure that the feedback resistors are placed close to the IC and that the feedback traces are short and direct.
  • The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize the equivalent series resistance and ensure stable operation.
  • To select the right output capacitor, consider the output voltage, output current, and ripple requirements. A general rule of thumb is to use a capacitor with a value of 10uF to 47uF, and a voltage rating of at least 2x the output voltage. Also, consider the ESR and ESL of the capacitor to ensure that it can handle the output current and ripple requirements.
  • The maximum output current that the LT8608 can deliver is 2A, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
