LT8609SEV#TRPBF - Analog Devices

Description: Switching Voltage Regulators 42V, 2A/3A Peak Sync Buck Reg w/ 2.5 A

Download LT8609SEV#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

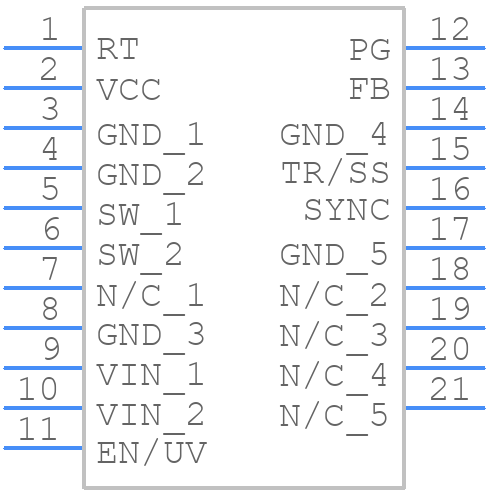

LT8609SEV#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8609SEV#TRPBF - Analog Devices PCB footprint - Other - Other - LQFN Package 16-Lead (3mm × 3mm × 0.94mm)
click to zoom
3D Models
LT8609SEV#TRPBF - Analog Devices - 3D model - Other - LQFN Package 16-Lead (3mm × 3mm × 0.94mm)
click to zoom

LT8609SEV#TRPBF Details

  • Manufacturer Part Number:

    LT8609SEV#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1516

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.03 mm

  • Supply Current-Max (Isup):

    0.7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8609SEV#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT8609SEV is 42V, but it's recommended to keep it below 36V for optimal performance and reliability.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW) away from sensitive nodes.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. X5R or X7R dielectric types are suitable for most applications.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet. For the inductor type, a shielded inductor with a low DCR (DC resistance) is recommended.
  • The maximum ambient temperature range for the LT8609SEV is -40°C to 125°C. However, the junction temperature should not exceed 150°C for reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8609SEV#TRPBF Overview

Use the download button to access the LT8609SEV#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT860, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
