LT8610ACIMSE-1#PBF - Analog Devices

Description: Switching Voltage Regulators 42V, 3.5A Synchronous Step-Down Regulator with 2.5A Quiescent Current & Improved Burstmode Ripple

Download LT8610ACIMSE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

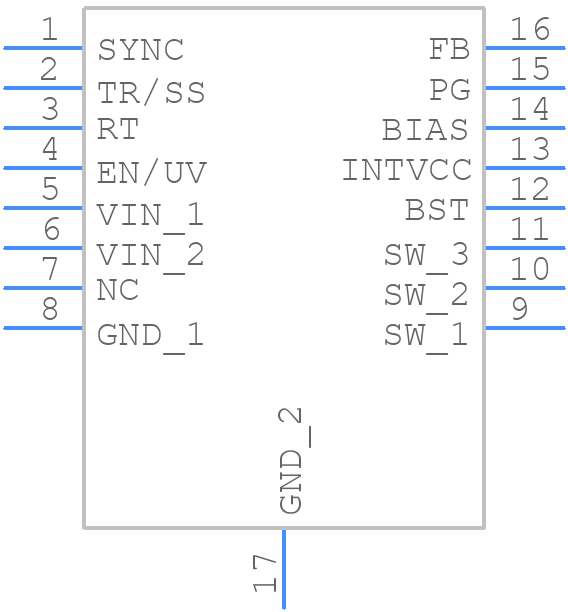

Symbol
LT8610ACIMSE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8610ACIMSE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT8610ACIMSE-1#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT8610ACIMSE-1#PBF Details

  • Manufacturer Part Number:

    LT8610ACIMSE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT8610ACIMSE-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8610 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors meet the recommended specifications. Additionally, the device's operating frequency and output voltage should be within the recommended range.
  • The LT8610 can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to consider the operating temperature range in your design.
  • Yes, the LT8610 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for use in high-reliability industrial and medical applications.
  • To troubleshoot issues with the LT8610, start by verifying that the device is properly powered and that the input and output voltages are within the recommended range. Check the device's operating frequency and ensure that it's within the recommended range. Also, verify that the compensation network and component values are correct. If the issue persists, consult the datasheet and application notes for further guidance.
