LT8620EUDD#PBF - Analog Devices

Description: 65V, 2A Synchronous Step-Down Regulator with 2.5μA Quiescent Current

Download LT8620EUDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

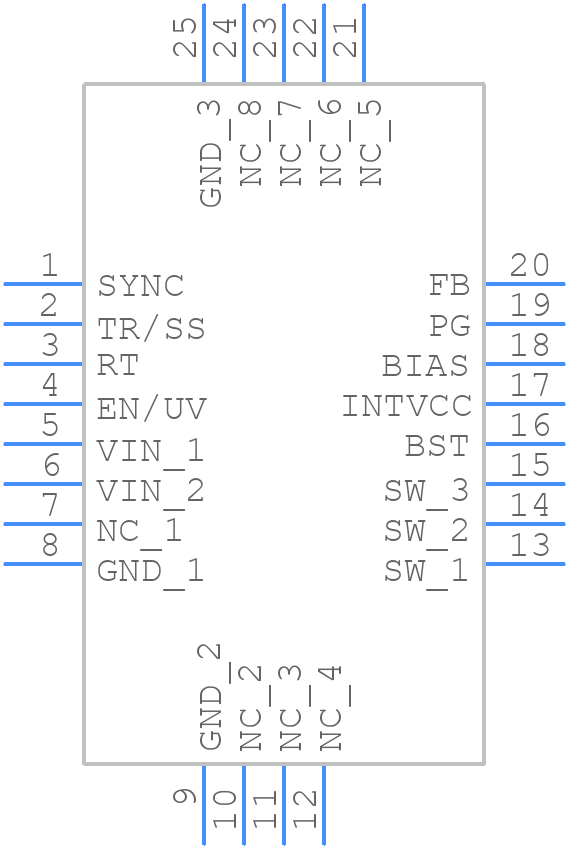

Symbol
LT8620EUDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8620EUDD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Plastic QFN (3mm × 5mm)
click to zoom
3D Models
LT8620EUDD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Plastic QFN (3mm × 5mm)
click to zoom

LT8620EUDD#PBF Details

  • Manufacturer Part Number:

    LT8620EUDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1833

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    3.4 V REGULATING OUTPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    3.4 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Nom:

    3.29 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.12X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8620EUDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8620EUDD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output voltage and current. Additionally, a minimum of 10uF input capacitance is recommended.
  • The maximum ambient temperature range for the LT8620EUDD is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT8620EUDD is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the highest reliability.
  • The power dissipation of the LT8620EUDD can be calculated using the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
