LT8622SAV#TRPBF - Analog Devices

Description: Buck Switching Regulator IC Positive Adjustable 0V 1 Output 2A 20-TFQFN Exposed Pad

Download LT8622SAV#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

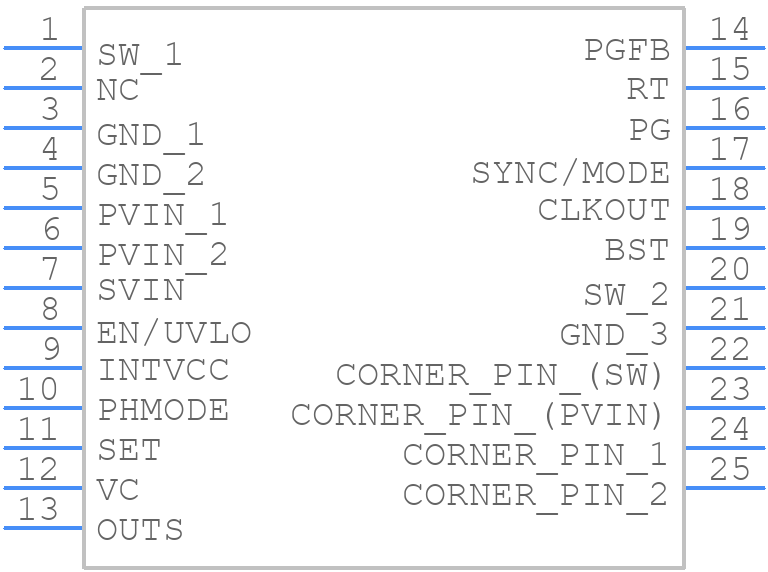

LT8622SAV#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8622SAV#TRPBF - Analog Devices PCB footprint - Other - Other - LGA/CASON/CH ARRY SO NO LD_2025
click to zoom
3D Models
LT8622SAV#TRPBF - Analog Devices - 3D model - Other - LGA/CASON/CH ARRY SO NO LD_2025
click to zoom

LT8622SAV#TRPBF Details

  • Manufacturer Part Number:

    LT8622SAV#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • Pin Count:

    20

  • Manufacturer Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-02-03

  • Manufacturer:

    Analog Devices Inc

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5.5 V

  • JESD-30 Code:

    R-XQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    17.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    6000 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8622SAV#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8622SAV involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly sized for the output voltage and current. A minimum output capacitance of 10uF is recommended.
  • The maximum ambient temperature range for the LT8622SAV is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT8622SAV is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is available in a variety of grades, including the 'V' grade which is qualified for automotive applications.
  • The power dissipation of the LT8622SAV can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
