LT8625SPJV#TRMPBF - Analog Devices

Description: Buck Switching Regulator IC Positive 1 Output 8A 20-TFQFN Exposed Pad -40°C ~ 150°C 18V Surface Mount

Download LT8625SPJV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

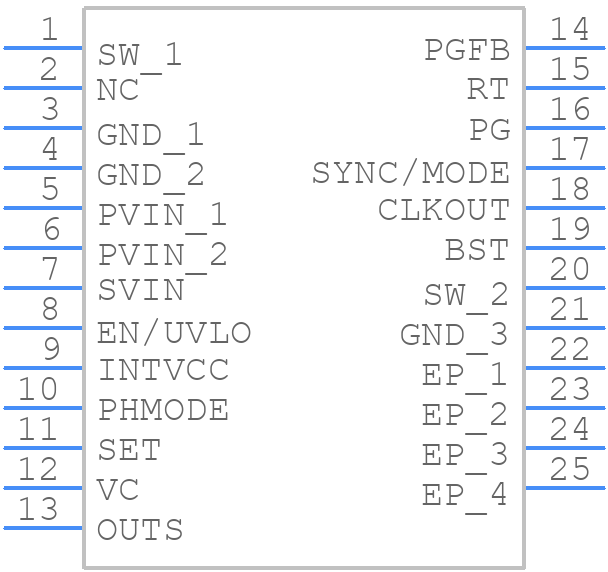

LT8625SPJV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8625SPJV#TRMPBF - Analog Devices PCB footprint - Other - Other - LQFN Package 20-Lead (3mm × 4mm × 0.95mm)_2025-2.2
click to zoom
3D Models
LT8625SPJV#TRMPBF - Analog Devices - 3D model - Other - LQFN Package 20-Lead (3mm × 4mm × 0.95mm)_2025-2.2
click to zoom

LT8625SPJV#TRMPBF Details

  • Manufacturer Part Number:

    LT8625SPJV#TRMPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N20

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    17.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC20,.11X.15,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4250 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8625SPJV#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the LT8625 demo board manual (DC2343A) and the LT8625 PCB layout guidelines document, both available on the Analog Devices website.
  • The selection of input and output capacitors depends on the specific requirements of your application. Refer to the Capacitor Selection Guide in the LT8625 datasheet and the Analog Devices capacitor selection tool for guidance.
  • The maximum ambient temperature rating for the LT8625SPJV#TRMPBF is 125°C, as specified in the datasheet.
  • Yes, the LT8625SPJV#TRMPBF is qualified for automotive and high-reliability applications. Refer to the device's AEC-Q100 qualification document and the Analog Devices automotive catalog for more information.
  • Refer to the LT8625 troubleshooting guide and the Analog Devices power management FAQs for guidance on troubleshooting common issues. Additionally, contact Analog Devices technical support for further assistance.
