LT8637EV#PBF - Analog Devices

Description: 42V, 5A/7A Peak Synchronous Step-Down Silent Switcher with 2.5?A Quiescent Current

Download LT8637EV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

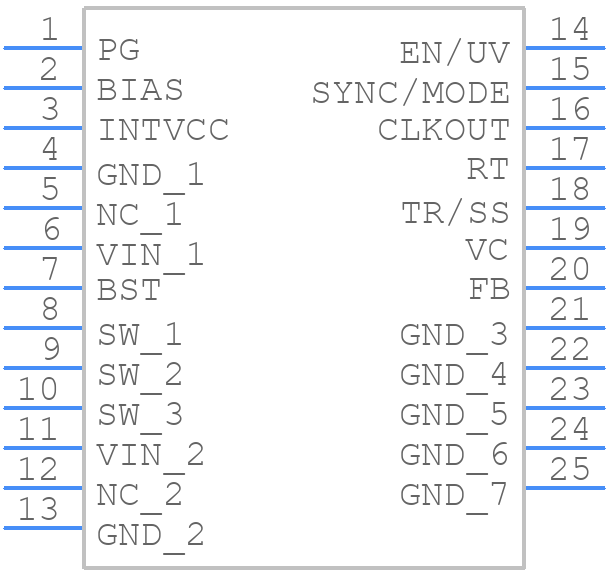

LT8637EV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8637EV#PBF - Analog Devices PCB footprint - Other - Other - LQFN PACKAGE 20-LEAD (4mm × 3mm × 0.94mm)_2026-3
click to zoom
3D Models
LT8637EV#PBF - Analog Devices - 3D model - Other - LQFN PACKAGE 20-LEAD (4mm × 3mm × 0.94mm)_2026-3
click to zoom

LT8637EV#PBF Details

  • Manufacturer Part Number:

    LT8637EV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1602

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3.4 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-XQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8637EV#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT8637 can handle is 42V, but it's recommended to keep it below 36V for optimal performance and reliability.
  • To optimize the layout for the LT8637, keep the input and output capacitors close to the IC, use a solid ground plane, and minimize the length of the traces between the IC and the capacitors. Also, keep the switching node (SW pin) away from sensitive nodes.
  • The recommended input capacitor type for the LT8637 is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor, with a voltage rating of at least 50V.
  • To choose the right inductor for the LT8637, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to use an inductor with a saturation current of at least 2A, a DC resistance of less than 100mΩ, and a ferrite or iron powder core.
  • The maximum output current that the LT8637 can deliver is 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
