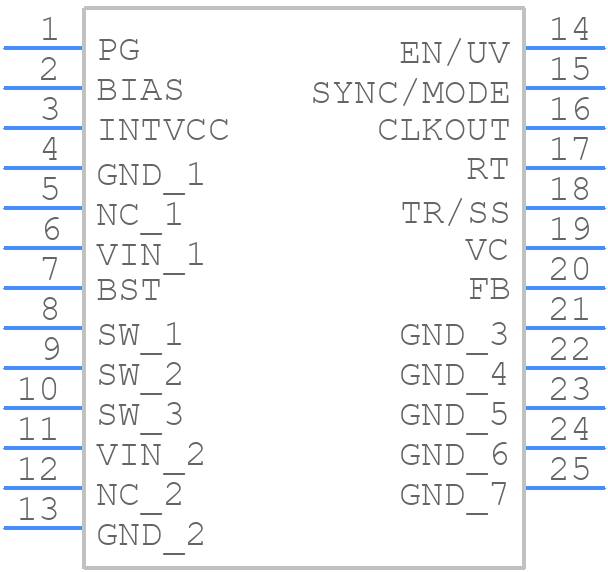

LT8637JV#PBF - Analog Devices

LT8637JV#PBF Details

• Manufacturer Part Number:

  LT8637JV#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LQFN-20

• Pin Count:

  20

• Manufacturer Package Code:

  05-08-1602

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  42 V

• Input Voltage-Min:

  3.4 V

• Input Voltage-Nom:

  6 V

• JESD-30 Code:

  R-XQCC-N20

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  5 A

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.12X.16,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  1.03 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  3000 kHz

• Technology:

  BIPOLAR

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  3 mm
