A good PCB layout for the LT8638SJV#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also recommended to consult with an experienced PCB designer or Analog Devices' application notes for more specific guidance.
The selection of input and output capacitors for the LT8638SJV#TRPBF depends on the specific application requirements, such as the input voltage range, output voltage, and output current. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult with an experienced engineer or Analog Devices' application notes for more specific guidance. Additionally, capacitor manufacturers such as Murata, TDK, and Vishay provide online tools and resources to help with capacitor selection.
The LT8638SJV#TRPBF is rated for operation up to 125°C junction temperature. However, the maximum ambient temperature that the device can operate in depends on the specific application and the thermal design of the system. In general, a maximum ambient temperature of 85°C is recommended, assuming a reasonable thermal design and airflow. It's recommended to consult with an experienced thermal engineer or Analog Devices' application notes for more specific guidance.
To ensure the reliability and long-term stability of the LT8638SJV#TRPBF, it's recommended to follow proper design and manufacturing practices, such as using a robust PCB design, selecting high-quality components, and ensuring proper thermal management. Additionally, it's recommended to perform thorough testing and validation of the design, including environmental testing, electrical testing, and reliability testing. It's also recommended to consult with an experienced engineer or Analog Devices' application notes for more specific guidance.
The potential failure modes of the LT8638SJV#TRPBF include overvoltage, undervoltage, overcurrent, and overheating. To mitigate these failure modes, it's recommended to implement proper overvoltage protection, undervoltage protection, and overcurrent protection in the design. Additionally, it's recommended to ensure proper thermal management, such as using a heat sink or thermal interface material, and to monitor the device's temperature and current consumption. It's also recommended to consult with an experienced engineer or Analog Devices' application notes for more specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT8638SJV#TRPBF Overview

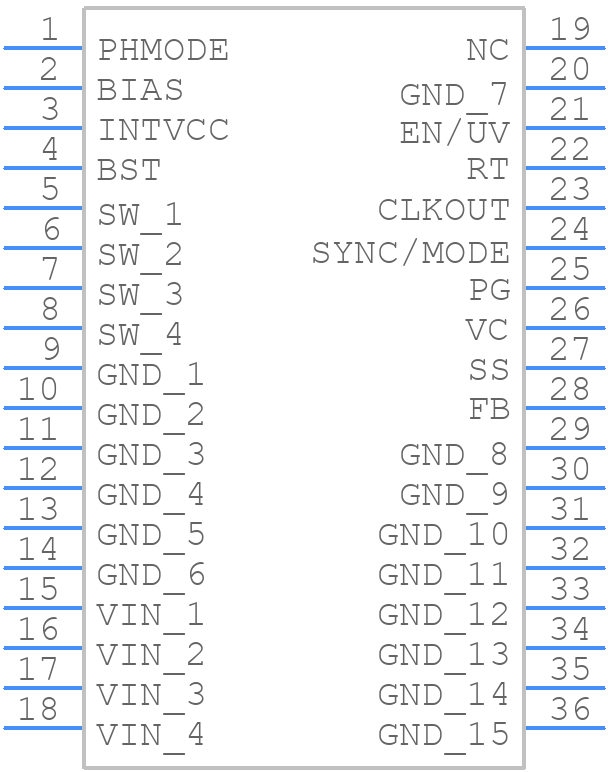

Use the download button to access the LT8638SJV#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT863,
or try a keyword search, such as Switching Regulator or Controllers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
