LT8640SEV#TRPBF - Analog Devices

Description: 42V, 6A Synchronous Step-Down Silent Switcher 2 with 2.5μA Quiescent Current

Download LT8640SEV#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

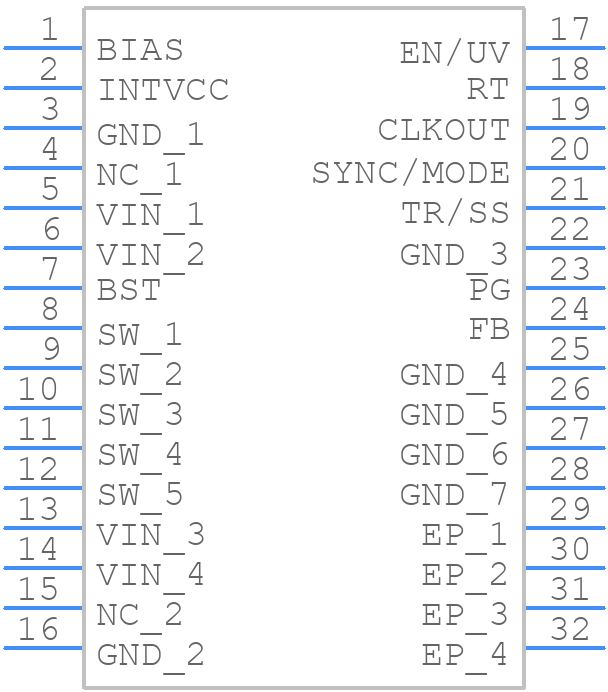

Symbol
LT8640SEV#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8640SEV#TRPBF - Analog Devices PCB footprint - Other - Other - LQFN PACKAGE 24-LEAD (4mm × 4mm × 0.94mm)
click to zoom
3D Models
LT8640SEV#TRPBF - Analog Devices - 3D model - Other - LQFN PACKAGE 24-LEAD (4mm × 4mm × 0.94mm)
click to zoom

LT8640SEV#TRPBF Details

  • Manufacturer Part Number:

    LT8640SEV#TRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    SILENT SWITCHER

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3.4 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    0.97 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2100 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LT8640SEV#TRPBF Frequently Asked Questions (FAQs)

  • The maximum junction temperature of the LT8640SEV is 125°C. However, it's recommended to keep the junction temperature below 115°C for reliable operation.
  • Yes, the LT8640SEV is designed to withstand high-vibration environments. It has a robust package and internal construction that can tolerate vibrations up to 10g peak acceleration.
  • For optimal thermal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet. This includes keeping the thermal pad connected to a solid copper plane, using a minimum of 2oz copper thickness, and keeping the surrounding components at a safe distance.
  • Yes, the LT8640SEV is designed to operate in humid environments. However, it's recommended to follow proper PCB assembly and packaging guidelines to prevent moisture ingress.
  • The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation.
