LT8650SIV#PBF - Analog Devices

Description: Switching Voltage Regulators Dual 42V, 5A Sync Buck in BT

Download LT8650SIV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

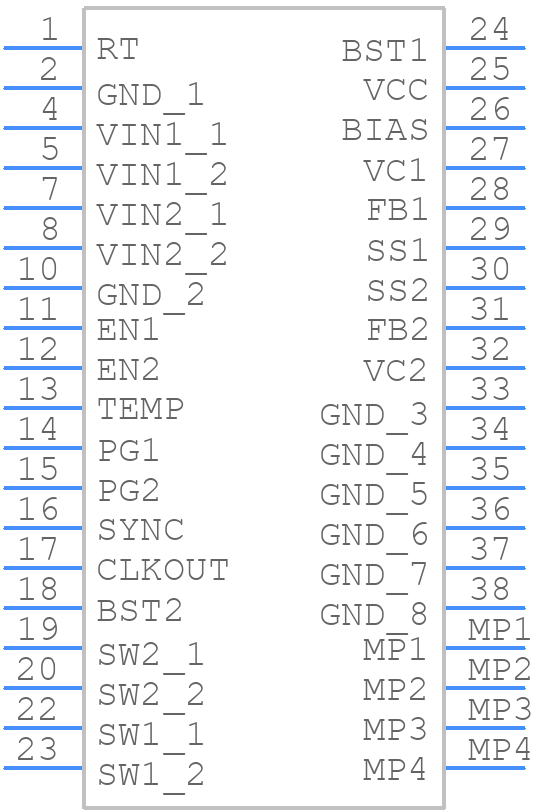

Symbol
LT8650SIV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8650SIV#PBF - Analog Devices PCB footprint - Other - Other - LT8650SIV#PBF-4
click to zoom
3D Models
LT8650SIV#PBF - Analog Devices - 3D model - Other - LT8650SIV#PBF-4
click to zoom

LT8650SIV#PBF Details

  • Manufacturer Part Number:

    LT8650SIV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1665

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.16X.24,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LT8650SIV#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8650 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the feedback resistors should be 1% or better tolerance to ensure accurate voltage regulation.
  • The maximum input voltage that the LT8650 can handle is 42V. Exceeding this voltage can cause damage to the IC. It's recommended to add input overvoltage protection to prevent damage from voltage spikes or transients.
  • The LT8650 is rated for operation up to 125°C junction temperature. However, the maximum ambient temperature rating is 85°C. If your application requires operation above 85°C, you may need to consider derating the output current or using a heat sink to keep the junction temperature within the recommended range.
  • The output voltage of the LT8650 is determined by the resistive divider network consisting of R1 and R2. The output voltage can be calculated using the formula: Vout = 0.8V x (1 + R2/R1).
