LT8705AIFE#PBF - Analog Devices

Description: Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 38-TSSOP-EP

Download LT8705AIFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

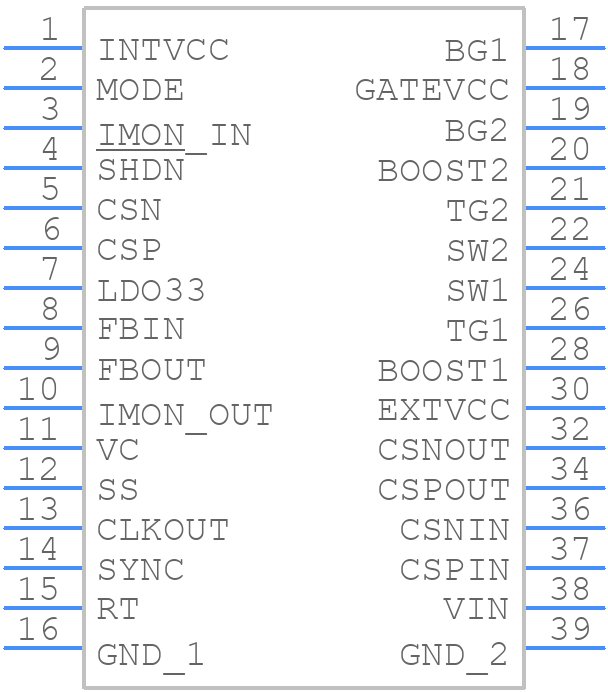

LT8705AIFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8705AIFE#PBF - Analog Devices PCB footprint - Other - Other - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG #
click to zoom

LT8705AIFE#PBF Details

  • Manufacturer Part Number:

    LT8705AIFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38/31

  • Pin Count:

    31

  • Manufacturer Package Code:

    05-08-1865

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G31

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    31

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    80 V

  • Output Voltage-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP31/38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LT8705AIFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT8705AIFE can handle is 60V, but it's recommended to operate it within the specified input voltage range of 4.5V to 38V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the stability can be further improved by adding a compensation network.
  • The maximum output current that the LT8705AIFE can deliver is 5A, but it's recommended to operate it within the specified output current range of 0A to 3A for optimal performance and to prevent overheating.
  • The LT8705AIFE has built-in overcurrent protection and thermal shutdown features to prevent damage from excessive current and high temperatures. However, it's still essential to follow proper design and layout guidelines, including the use of a suitable heat sink and thermal interface material, to ensure reliable operation.
  • The LT8705AIFE is rated for operation from -40°C to 125°C, but it's recommended to operate it within the specified temperature range of -40°C to 85°C for optimal performance and reliability. Above 85°C, the device's performance and reliability may degrade.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8705AIFE#PBF Overview

Use the download button to access the LT8705AIFE#PBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LT870, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
