LT8705EUHF#PBF - Analog Devices

Description: 80V VIN and VOUT Synchronous 4-Switch Buck-Boost DC/DC Controller

Download LT8705EUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

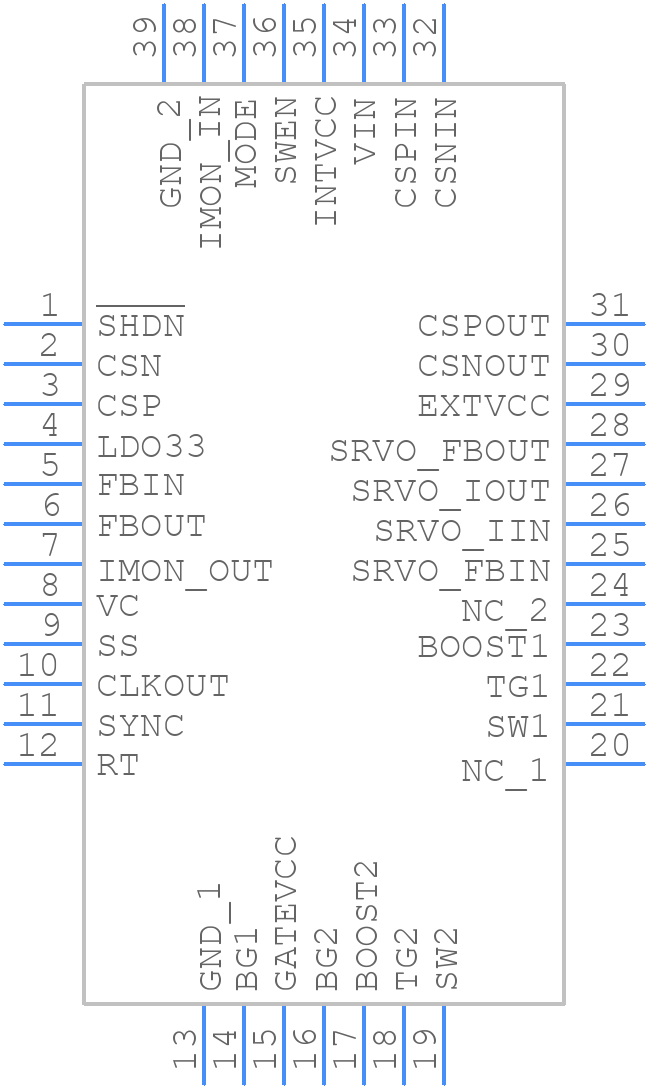

LT8705EUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8705EUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm)
click to zoom
3D Models
LT8705EUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm)
click to zoom

LT8705EUHF#PBF Details

  • Manufacturer Part Number:

    LT8705EUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 5 MM, LEAD FREE, PLASTIC, MO-220WHKD, QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.3V TO 80V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    80 V

  • Output Voltage-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LT8705EUHF#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT8705EUHF#PBF can handle is 80V. However, it's recommended to operate within the specified input voltage range of 4.5V to 60V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the stability can be further improved by adding a capacitor in parallel with the output capacitor.
  • The maximum output current that the LT8705EUHF#PBF can deliver is 5A. However, the actual output current may be limited by the input voltage, output voltage, and the thermal performance of the device.
  • The LT8705EUHF#PBF has built-in overcurrent protection and thermal shutdown features. However, it's still essential to follow proper design and layout guidelines to prevent overheating and overcurrent conditions. Additionally, consider adding external protection components, such as fuses or current-sensing resistors, to further protect the device.
  • The LT8705EUHF#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider the thermal performance of the device when designing for high-temperature applications.
