LT8705IFE#PBF - Analog Devices

Description: IC REG CTRLR BUCK-BOOST 38TSSOP

Download LT8705IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

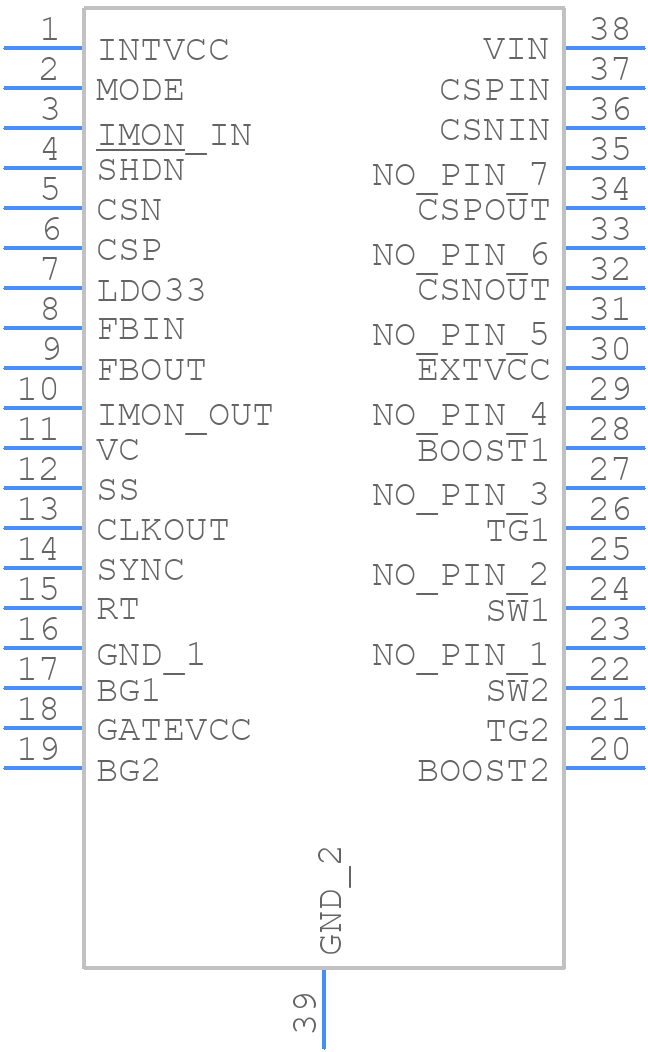

LT8705IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8705IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 38 lead tssop
click to zoom
3D Models
LT8705IFE#PBF - Analog Devices - 3D model - Small Outline Packages - 38 lead tssop
click to zoom

LT8705IFE#PBF Details

  • Manufacturer Part Number:

    LT8705IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.4 MM, LEAD FREE, PLASTIC, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1865

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.3V TO 80V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    80 V

  • Output Voltage-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT8705IFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8705 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors meet the recommended specifications, and that the feedback resistors are properly selected. Additionally, a minimum ESR of 10mΩ is recommended for the output capacitor.
  • The LT8705 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • Yes, the LT8705 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for high-reliability industrial and medical applications.
  • To troubleshoot issues with the LT8705, start by checking the PCB layout and component values against the recommended specifications. Verify that the input and output capacitors meet the recommended specifications, and that the feedback resistors are properly selected. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
