LT8708EUHG-1#PBF - Analog Devices

Description: 80V Synchronous 4-Switch Buck-Boost DC/DC Slave Controller for LT8708 Multiphase System

Download LT8708EUHG-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

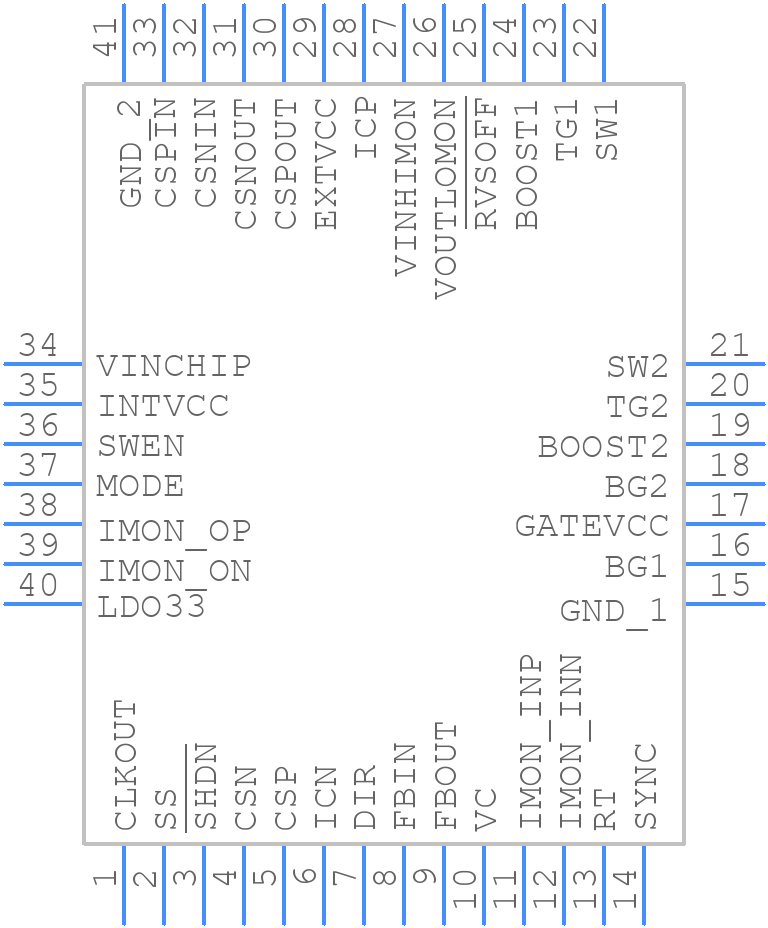

Symbol
LT8708EUHG-1#PBF - Analog Devices - PCB symbol
click to zoom

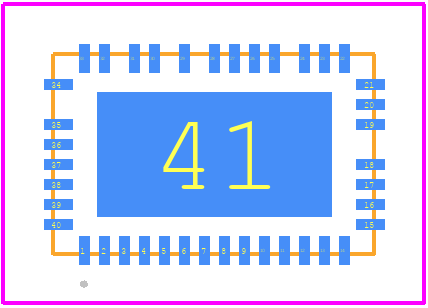

PCB Footprints
LT8708EUHG-1#PBF - Analog Devices PCB footprint - Other - Other - LT8708EUHG-1#PBF-2
click to zoom
3D Models
LT8708EUHG-1#PBF - Analog Devices - 3D model - Other - LT8708EUHG-1#PBF-2
click to zoom

LT8708EUHG-1#PBF Details

  • Manufacturer Part Number:

    LT8708EUHG-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1528

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PHASE-SHIFT CONTROL

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    0.00012 A

  • Output Voltage-Max:

    80 V

  • Output Voltage-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.2X.32,.2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LT8708EUHG-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8708EUHG-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the feedback network should be properly compensated to prevent oscillations.
  • The maximum ambient temperature range for the LT8708EUHG-1#PBF is -40°C to 125°C. However, the junction temperature should not exceed 150°C to ensure reliable operation.
  • Yes, the LT8708EUHG-1#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high performance and reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LT8708EUHG-1#PBF, start by checking the input and output voltages, as well as the current drawn from the input. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or other anomalies in the output voltage. If the issue persists, consult the datasheet and application notes for further guidance.
