LT8708HLWE-1#PBF - Analog Devices

Description: Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 64-LQFP-EP (10x10)

Download LT8708HLWE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LT8708HLWE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

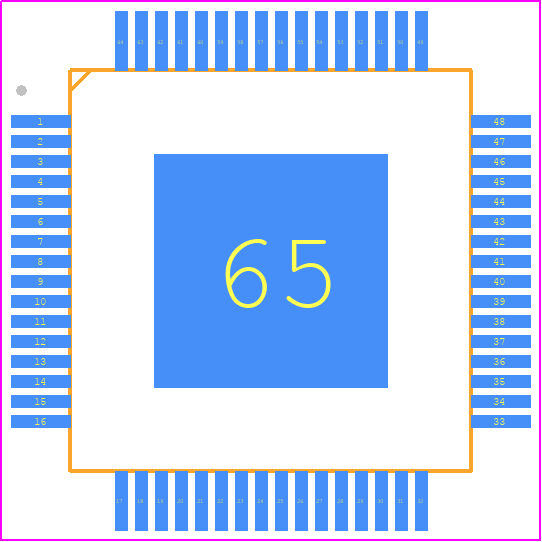

LT8708HLWE-1#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP (10mm × 10mm)
click to zoom
3D Models
LT8708HLWE-1#PBF - Analog Devices - 3D model - Quad Flat Packages - LQFP (10mm × 10mm)
click to zoom

LT8708HLWE-1#PBF Details

  • Manufacturer Part Number:

    LT8708HLWE-1#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    80 V

  • Output Voltage-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

LT8708HLWE-1#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LT8708HLWE-1#PBF can be found in the device's evaluation board documentation or by contacting Analog Devices' technical support. Generally, it is recommended to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces.
  • The selection of the right inductor for the LT8708HLWE-1#PBF depends on several factors, including the input voltage, output voltage, and output current. Analog Devices provides an inductor selection guide in the device's datasheet, which can be used to select a suitable inductor. Additionally, the device's evaluation board documentation may also provide guidance on inductor selection.
  • The maximum ambient temperature that the LT8708HLWE-1#PBF can operate in is 125°C, as specified in the device's datasheet. However, the device's performance and reliability may be affected at high temperatures, and it is recommended to operate the device within the recommended operating temperature range for optimal performance.
  • Yes, the LT8708HLWE-1#PBF is a high-reliability device that is suitable for use in high-reliability applications. The device is manufactured using a high-reliability process and is screened to ensure that it meets the required standards for high-reliability applications.
  • Troubleshooting issues with the LT8708HLWE-1#PBF typically involves checking the device's input and output voltages, currents, and temperatures, as well as the PCB layout and component values. Analog Devices provides a troubleshooting guide in the device's datasheet, which can be used to identify and resolve common issues. Additionally, the device's evaluation board documentation may also provide guidance on troubleshooting.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8708HLWE-1#PBF Overview

Use the download button to access the LT8708HLWE-1#PBF schematic symbol, PCB footprint, and 3D model.
