LT8708ILWE-1#PBF - Analog Devices

Description: 80V Synchronous 4-Switch Buck-Boost DC/DC Slave Controller for LT8708 Multiphase System

Download LT8708ILWE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LT8708ILWE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

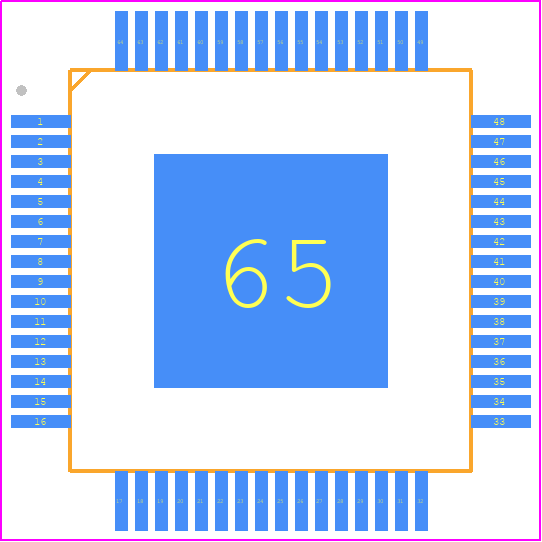

LT8708ILWE-1#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-Lead (10mm × 10mm) Plastic eLQFP-1
click to zoom
3D Models
LT8708ILWE-1#PBF - Analog Devices - 3D model - Quad Flat Packages - 64-Lead (10mm × 10mm) Plastic eLQFP-1
click to zoom

LT8708ILWE-1#PBF Details

  • Manufacturer Part Number:

    LT8708ILWE-1#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    80 V

  • Output Voltage-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

LT8708ILWE-1#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing loop areas.
  • The datasheet provides guidelines for inductor selection, but it's also important to consider factors such as inductor core material, saturation current, and DC resistance. Analog Devices also provides an inductor selection tool on their website to help with this process.
  • The datasheet specifies an operating temperature range of -40°C to 125°C, but it's also important to consider the maximum ambient temperature that the device will be exposed to in the application, as well as any thermal derating that may be required.
  • Analog Devices provides a troubleshooting guide in the datasheet, but it's also recommended to use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Additionally, checking the PCB layout, component selection, and input/output voltage levels can help to identify potential problems.
  • The LT8708ILWE-1#PBF is an industrial-grade device, but it may not meet the specific requirements of high-reliability or automotive applications. Analog Devices offers other devices that are specifically designed for these applications, such as the LT8708ILWQ-1#PBF, which is qualified to the AEC-Q100 standard.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8708ILWE-1#PBF Overview

Use the download button to access the LT8708ILWE-1#PBF schematic symbol, PCB footprint, and 3D model.
