Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LTA-1000E
- Part Number LTA-1000E
- Manufacturer Lite-On
- Pin Count 20
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LTA-1000E
- Released Date Oct 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LTA-1000E Details
-
Manufacturer Part Number:
LTA-1000E
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
HTS Code:
8541.40.20.00
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Lite-On Semiconductor Corporation
-
YTEOL:
6
-
Additional Feature:
HIGH RELIABILITY
-
Color:
RED ORANGE
-
Color@Wavelength:
Amber
LTA-1000E Frequently Asked Questions (FAQs)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a metal plate to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling capability at high temperatures.
-
The device can withstand a maximum voltage stress of 1.5 times the rated voltage for a short duration (less than 1 second). However, it's recommended to operate within the specified voltage range for reliable operation.
-
Handle the device with an anti-static wrist strap or mat, and ensure that the PCB has ESD protection circuits. Also, use a conformal coating to protect the device from moisture and humidity.
-
Store the device in a dry, cool place with a relative humidity of 60% or less. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
Trust Checks
Community Provided
System Verified
Community Approved
LTA-1000E Overview

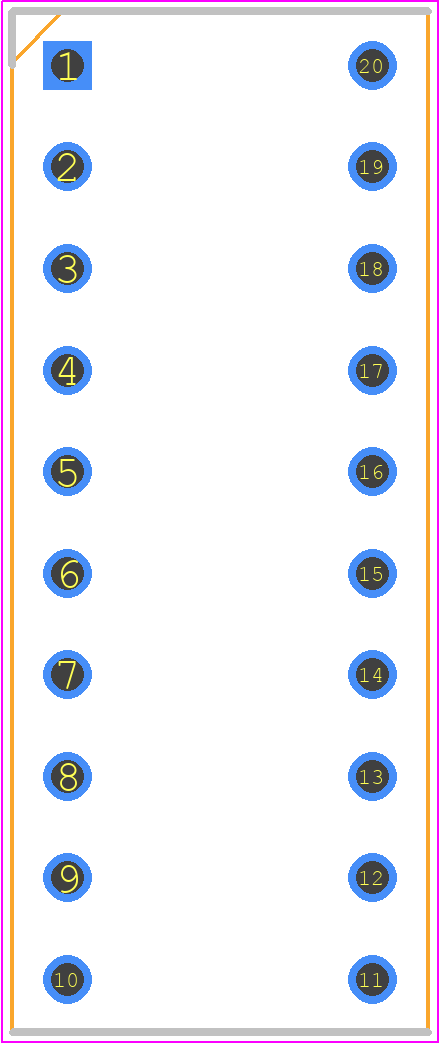

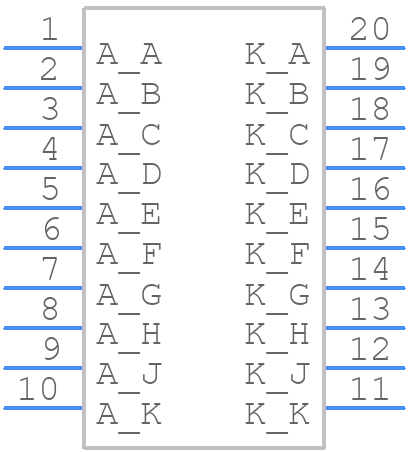

Use the download button to access the LTA-1000E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LTA-1,
or try a keyword search, such as Visible LEDs
