A 2-layer or 4-layer PCB with a large copper area for heat dissipation is recommended. The device should be placed near a thermal pad or a heat sink to ensure efficient heat transfer.
Monitor the device's junction temperature (TJ) and ensure it does not exceed 150°C. Also, ensure the input voltage (VIN) is within the recommended range of 3.5V to 36V.
The maximum allowable ripple voltage on the input is 10% of the nominal input voltage. Exceeding this may affect the device's performance and reliability.
Yes, but ensure the device is properly sealed and conformal coated to prevent moisture ingress. The device is rated for operation in environments with a relative humidity of up to 80%.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed as close to the device as possible.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTA-1000HR Overview

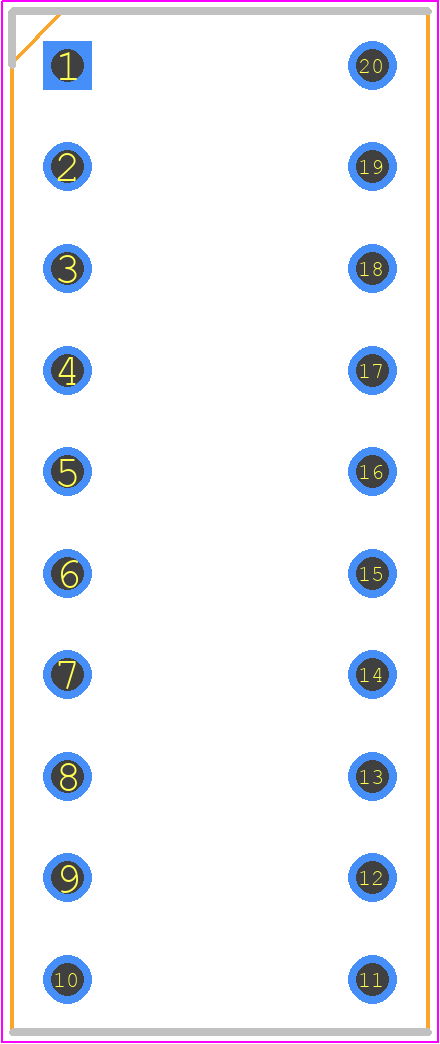

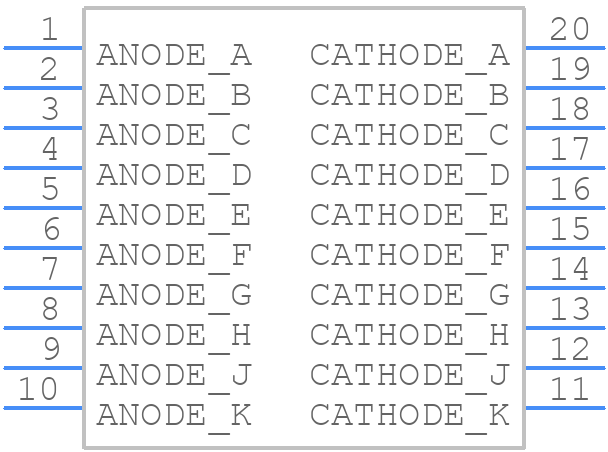

Use the download button to access the LTA-1000HR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTA-1,
or try a keyword search, such as Visible LEDs
