LTA1VS16C-351-R - Eaton

Description: 350µH LAN 10/100 Base-TX Pulse Transformer 1CT:1CT Surface Mount

Download LTA1VS16C-351-R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LTA1VS16C-351-R model

Email notifications will be applied after download.

Send part feedback

Symbol

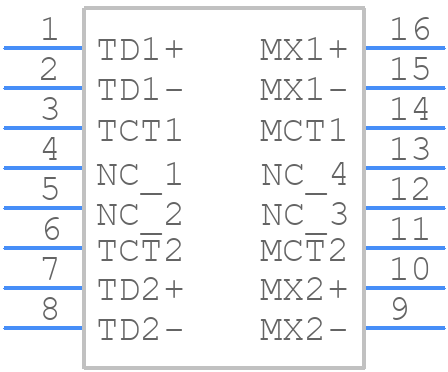

LTA1VS16C-351-R - Eaton - PCB symbol

PCB Footprints

LTA1VS16C-351-R - Eaton PCB footprint - Other - Other - 12.80mm x 6.90mm x 5.25mm

3D Models

LTA1VS16C-351-R - Eaton - 3D model - Other - 12.80mm x 6.90mm x 5.25mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTA1VS16C-351-R
Part Number LTA1VS16C-351-R
Manufacturer Eaton
Pin Count 16
Part Category Transformer
Package Category Other
Footprint Name Other - 12.80mm x 6.90mm x 5.25mm
Released Date Apr 14, 2025
Last Modified Date Apr 14, 2025 9:57 AM UTC
Pinout / Pin List Click Here (Member Only)

LTA1VS16C-351-R Details

Manufacturer Part Number:
LTA1VS16C-351-R
Manufacturer:
Eaton Electronics

Trust Checks

Community Provided

System Verified

Community Approved

LTA1VS16C-351-R Overview

Use the download button to access the LTA1VS16C-351-R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTA1V, or try a keyword search, such as Visible LEDs
