LTC1046CN8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1046CN8#PBF - DC/DC Adjustable Charge Pump Voltage Converter, 1.5V to 6V in, -6V to -1.5V/50 mA out, DIP-8

Download LTC1046CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

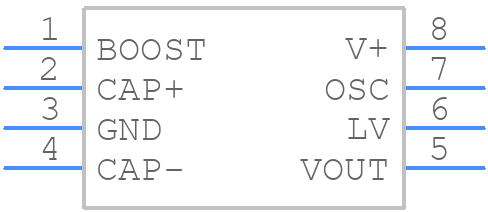

LTC1046CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1046CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LTC1046CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom

LTC1046CN8#PBF Details

  • Manufacturer Part Number:

    LTC1046CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.78 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.445 mm

  • Supply Current-Max (Isup):

    0.3 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    30 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1046CN8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1046CN8 involves keeping the input and output pins away from each other, using a ground plane to reduce noise, and placing the device close to the analog signal sources to minimize noise pickup. A detailed layout guide can be found in the application note AN70 from Analog Devices.
  • The LTC1046CN8 is specified to operate from -40°C to 85°C. Ensure that the device is properly heatsinked, and that the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the package when designing the system.
  • The maximum clock frequency that can be used with the LTC1046CN8 is 1MHz. However, the actual clock frequency used may be limited by the specific application and the noise tolerance of the system.
  • Yes, the LTC1046CN8 can be used in a multiplexed configuration. However, the multiplexer must be designed to ensure that the switch-on resistance is low enough to maintain the required signal integrity, and that the multiplexer does not introduce significant noise or distortion.
  • To troubleshoot issues with the LTC1046CN8, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check for noise and distortion on the input and output signals, and ensure that the device is properly grounded. Consult the datasheet and application notes for specific troubleshooting guidelines.
