LTC1053CSW#PBF - Analog Devices

Description: Linear Technology LTC1053CSW#PBF, Dual Zero Drift Op Amp, 2.5MHz, 4.75 → 16 V, 18-Pin SOIC

Download LTC1053CSW#PBF Model

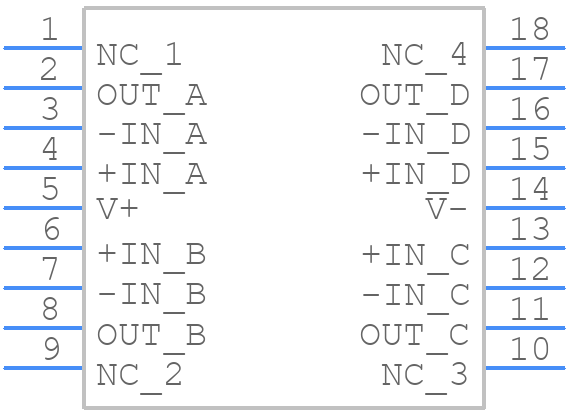

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1053CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW18
click to zoom
3D Models
LTC1053CSW#PBF - Analog Devices  - 3D model - Small Outline Packages - SW18
click to zoom

LTC1053CSW#PBF Details

  • Manufacturer Part Number:

    LTC1053CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1620 (SW18)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000135 µA

  • Bias Current-Max (IIB) @25C:

    0.000065 µA

  • Common-mode Reject Ratio-Min:

    106 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5 µV

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.557 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8.25 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Slew Rate-Nom:

    4 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    8.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2500

  • Wideband:

    NO

  • Width:

    7.493 mm

LTC1053CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1053CSW involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10Ω) in series with the output can help dampen oscillations.
  • The maximum input voltage that the LTC1053CSW can handle is ±15V. Exceeding this voltage can cause damage to the device. It's recommended to add input protection circuitry, such as a voltage limiter or a transient voltage suppressor, to prevent overvoltage conditions.
  • While the LTC1053CSW is primarily a voltage converter, it can be used as a voltage regulator in certain applications. However, it's essential to ensure that the output voltage is within the device's specified range (±5V) and that the input voltage is stable and within the recommended range.
  • The output voltage of the LTC1053CSW can be calculated using the following formula: VOUT = (R1/R2) × (VIN - VREF), where R1 and R2 are the feedback resistors, VIN is the input voltage, and VREF is the reference voltage (typically 2.5V).
