LTC1060CN#PBF - Analog Devices

Description: Active Filters Universal 2x Filt Building Block

Download LTC1060CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

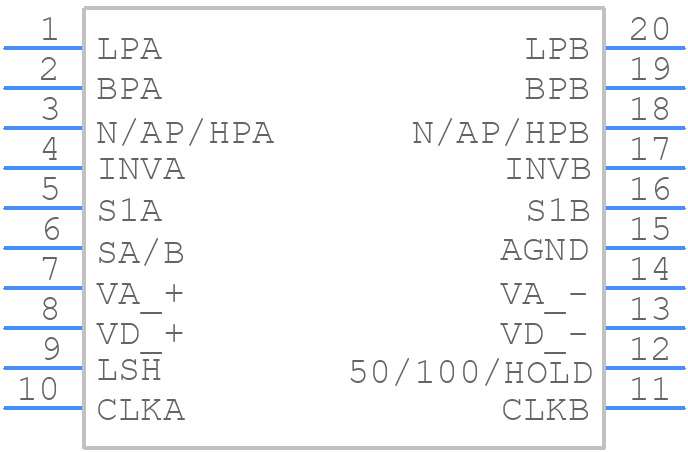

LTC1060CN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

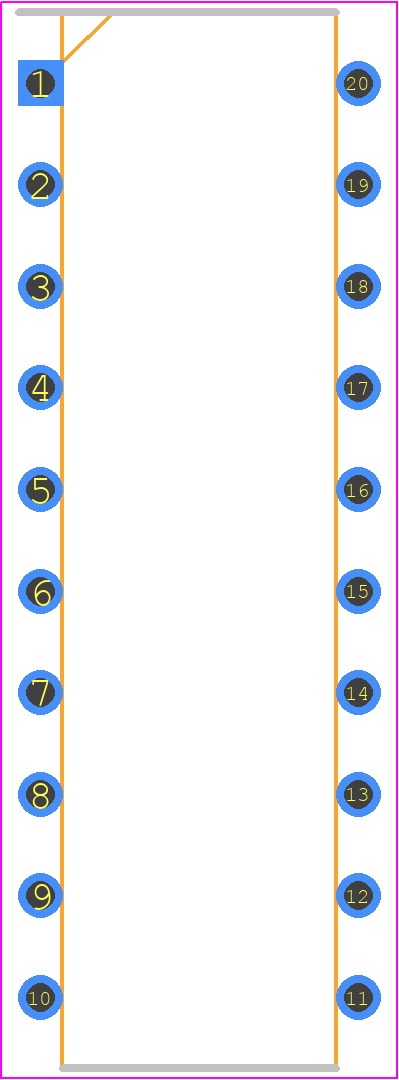

LTC1060CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LTC1060CN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch)
click to zoom

LTC1060CN#PBF Details

  • Manufacturer Part Number:

    LTC1060CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1510 (N20)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    20 kHz

  • Center or Cutoff Freq Rng-Min:

    0.1 kHz

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.37 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.37 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BUTTERWORTH/BESSEL/CHEBYSHEV

  • Width:

    7.62 mm

LTC1060CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1060CN involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output capacitors close to the device.
  • The values of the external resistors and capacitors depend on the specific application and the desired filter characteristics. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific requirements of the application. It's also recommended to use a filter design tool or simulation software to optimize the component values.
  • The maximum power dissipation of the LTC1060CN is 1.4W. To ensure that it doesn't overheat, it's recommended to provide adequate heat sinking, such as a copper plane or a heat sink, and to keep the device in a well-ventilated area. Additionally, it's recommended to keep the device within the recommended operating temperature range of -40°C to 85°C.
  • Yes, the LTC1060CN is suitable for high-reliability and high-temperature applications. It's manufactured using a high-reliability process and is rated for operation up to 125°C. However, it's recommended to consult with Analog Devices Inc. for specific guidance on using the device in high-reliability or high-temperature applications.
  • Common issues with the LTC1060CN can often be traced back to poor PCB layout, incorrect component values, or inadequate power supply decoupling. To troubleshoot these issues, it's recommended to check the PCB layout, verify the component values, and ensure that the power supply is adequately decoupled. Additionally, it's recommended to consult the datasheet and application notes for guidance on troubleshooting and optimizing the device's performance.
