- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LTC1060CSW
- Part Number LTC1060CSW
- Manufacturer Analog Devices
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 20-Lead Plastic Small Outline (Wide .300 Inch)-
- Released Date Apr 4, 2024
- Last Modified Date Jun 25, 2024 8:09 AM UTC
- Pinout / Pin List Click Here (Member Only)
LTC1060CSW Details
-
Manufacturer Part Number:
LTC1060CSW
-
Part Life Cycle Code:
Obsolete
-
Package Description:
0.300 INCH, PLASTIC, SO-20
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Active Filter Type:
SWITCHED CAPACITOR FILTER
-
Center or Cutoff Freq Rng-Max:
20 kHz
-
Center or Cutoff Freq Rng-Min:
0.1 kHz
-
JESD-30 Code:
R-PDSO-G20
LTC1060CSW Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the LTC1060CSW involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended.
-
To optimize the performance of the LTC1060CSW, ensure that the input and output impedances are matched, use a low-ESR capacitor for the output filter, and minimize the noise on the power supply lines. Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
-
The maximum power dissipation of the LTC1060CSW is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
-
Yes, the LTC1060CSW can be used in a switching power supply application. However, it is essential to ensure that the device is properly bypassed and decoupled to minimize the effects of switching noise. Additionally, the output filter should be designed to attenuate the switching frequency and its harmonics.
-
To troubleshoot common issues with the LTC1060CSW, start by verifying the power supply voltage, checking for proper decoupling and bypassing, and ensuring that the input and output impedances are matched. Also, check for noise on the power supply lines and ensure that the device is operated within its recommended operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
LTC1060CSW Overview

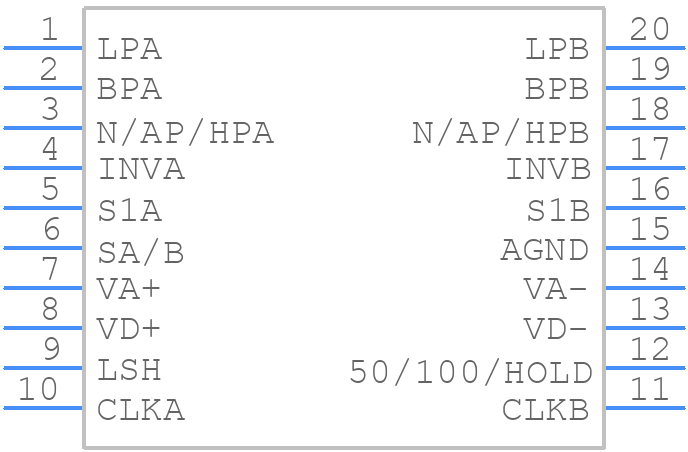

Use the download button to access the LTC1060CSW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC10,
or try a keyword search, such as Active Filters
