LTC1061ACN#PBF - Analog Devices

Description: High Performance Triple Universal Filter Building Block,18V,500mW, –65°C to 150°C

Download LTC1061ACN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

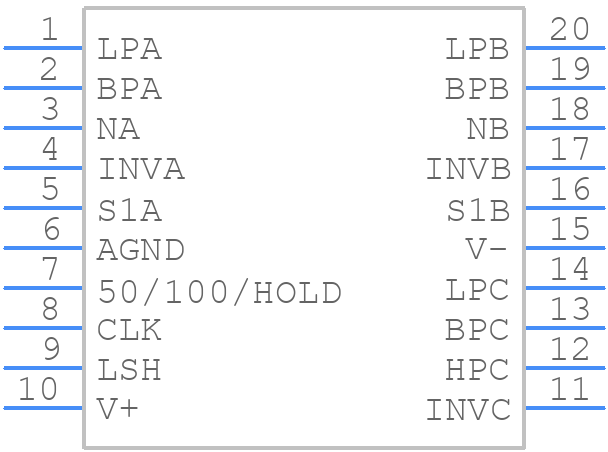

LTC1061ACN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1061ACN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch)_2026
click to zoom
3D Models
LTC1061ACN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch)_2026
click to zoom

LTC1061ACN#PBF Details

  • Manufacturer Part Number:

    LTC1061ACN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1510 (N20)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    35 kHz

  • Center or Cutoff Freq Rng-Min:

    0.0001 kHz

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.92 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.37 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    3.81 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.37 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    7.62 mm

LTC1061ACN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1061ACN#PBF involves keeping the input and output pins away from each other, using a ground plane to reduce noise, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the signal traces short and direct.
  • The choice of external resistors and capacitors depends on the specific application requirements, such as the frequency range, gain, and impedance. The datasheet provides some general guidelines, but it's recommended to use Analog Devices' online filter design tools or consult with an applications engineer to determine the optimal values for your specific design.
  • The maximum power dissipation of the LTC1061ACN#PBF is 1.4W, and it's recommended to ensure that the device is operated within the specified temperature range (-40°C to 85°C) to prevent overheating. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device.
  • Common issues with the LTC1061ACN#PBF can be troubleshooted by checking the power supply voltage, ensuring that the input and output pins are properly terminated, and verifying that the external components are correctly valued and placed. Additionally, it's recommended to consult the datasheet and application notes, and to use simulation tools or consult with an applications engineer to identify and resolve the issue.
  • Yes, the LTC1061ACN#PBF is compatible with other Analog Devices products, and it can be used in a system-level design. In fact, Analog Devices offers a range of products that can be used together to create a complete signal chain solution. It's recommended to consult with an applications engineer or use Analog Devices' online tools and resources to ensure compatibility and optimal system performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1061ACN#PBF Overview

Use the download button to access the LTC1061ACN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC10, or try a keyword search, such as Active Filters
