LTC1061CSW#TRPBF - Analog Devices

Description: High Performance Triple Universal Filter Building Block,18V,,500mW –65°C to 150°C

Download LTC1061CSW#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

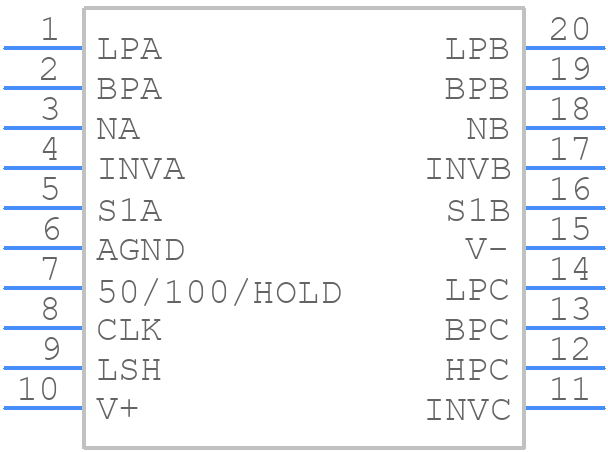

LTC1061CSW#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1061CSW#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package 20-Lead Plastic Small Outline (Wide .300 Inch)
click to zoom
3D Models
LTC1061CSW#TRPBF - Analog Devices - 3D model - Small Outline Packages - SW Package 20-Lead Plastic Small Outline (Wide .300 Inch)
click to zoom

LTC1061CSW#TRPBF Details

  • Manufacturer Part Number:

    LTC1061CSW#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1620 (SW20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    35 kHz

  • Center or Cutoff Freq Rng-Min:

    0.0001 kHz

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.37 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.37 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    7.5 mm

LTC1061CSW#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1061CSW involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended.
  • The values of the external resistors and capacitors depend on the specific application and the desired filter characteristics. Analog Devices provides a Filter Design Tool that can be used to calculate the recommended values based on the desired filter response.
  • The maximum power dissipation of the LTC1061CSW is dependent on the operating temperature and the package type. For the SW package, the maximum power dissipation is 1.4W at 25°C. However, it is recommended to derate the power dissipation based on the operating temperature and the desired reliability.
  • The LTC1061CSW is rated for operation from -40°C to 85°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to consult the datasheet and the manufacturer's application notes for guidance on using the device in high-temperature environments.
  • Common issues with the LTC1061CSW can often be traced back to poor PCB layout, incorrect component values, or inadequate power supply decoupling. Troubleshooting involves checking the PCB layout, verifying the component values, and ensuring adequate power supply decoupling. Analog Devices also provides application notes and technical support to help troubleshoot issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1061CSW#TRPBF Overview

Use the download button to access the LTC1061CSW#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC10, or try a keyword search, such as Active Filters
