LTC1062CSW#PBF - Analog Devices

Description: LTC1062CSW#PBF, Active Filter, Low Pass Filter, 5th Order Switched Capacitor 20kHz, 16-Pin SOIC W

Download LTC1062CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

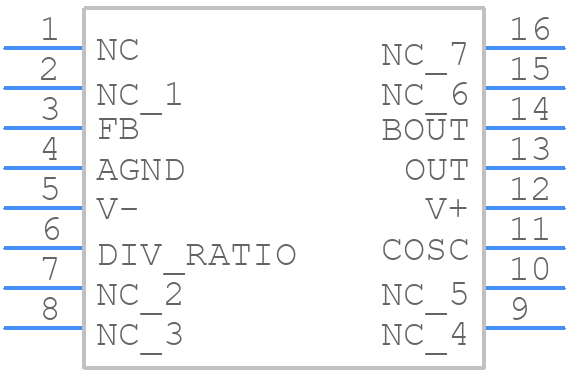

LTC1062CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1062CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW(SOP)
click to zoom
3D Models
LTC1062CSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW(SOP)
click to zoom

LTC1062CSW#PBF Details

  • Manufacturer Part Number:

    LTC1062CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -9 V

  • Neg Supply Voltage-Min (Vsup):

    -2.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    9 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC1062CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1062CSW#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the analog and digital grounds separate.
  • The LTC1062CSW#PBF is specified to operate from -40°C to 85°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use a thermally conductive material for the PCB. Additionally, consider using thermal simulation tools to predict the device's temperature during operation.
  • When selecting external components for the LTC1062CSW#PBF, consider the component's tolerance, temperature coefficient, and parasitic inductance. For example, choose resistors with low temperature coefficients and capacitors with low equivalent series resistance (ESR). Additionally, ensure the components are rated for the operating voltage and current of the application.
  • To troubleshoot common issues with the LTC1062CSW#PBF, start by verifying the PCB layout and component selection. Check for proper power supply decoupling, ensure the device is operated within its specified temperature range, and verify the input and output signals are within the specified voltage ranges. Use an oscilloscope to observe the device's behavior and identify any signs of oscillation or instability.
  • The LTC1062CSW#PBF is a high-performance, low-noise, and low-distortion amplifier. Compared to other similar devices from Analog Devices Inc, the LTC1062CSW#PBF offers a higher slew rate, lower noise, and improved distortion performance. It's essential to review the datasheet and compare the specifications of different devices to determine the best fit for a particular application.
